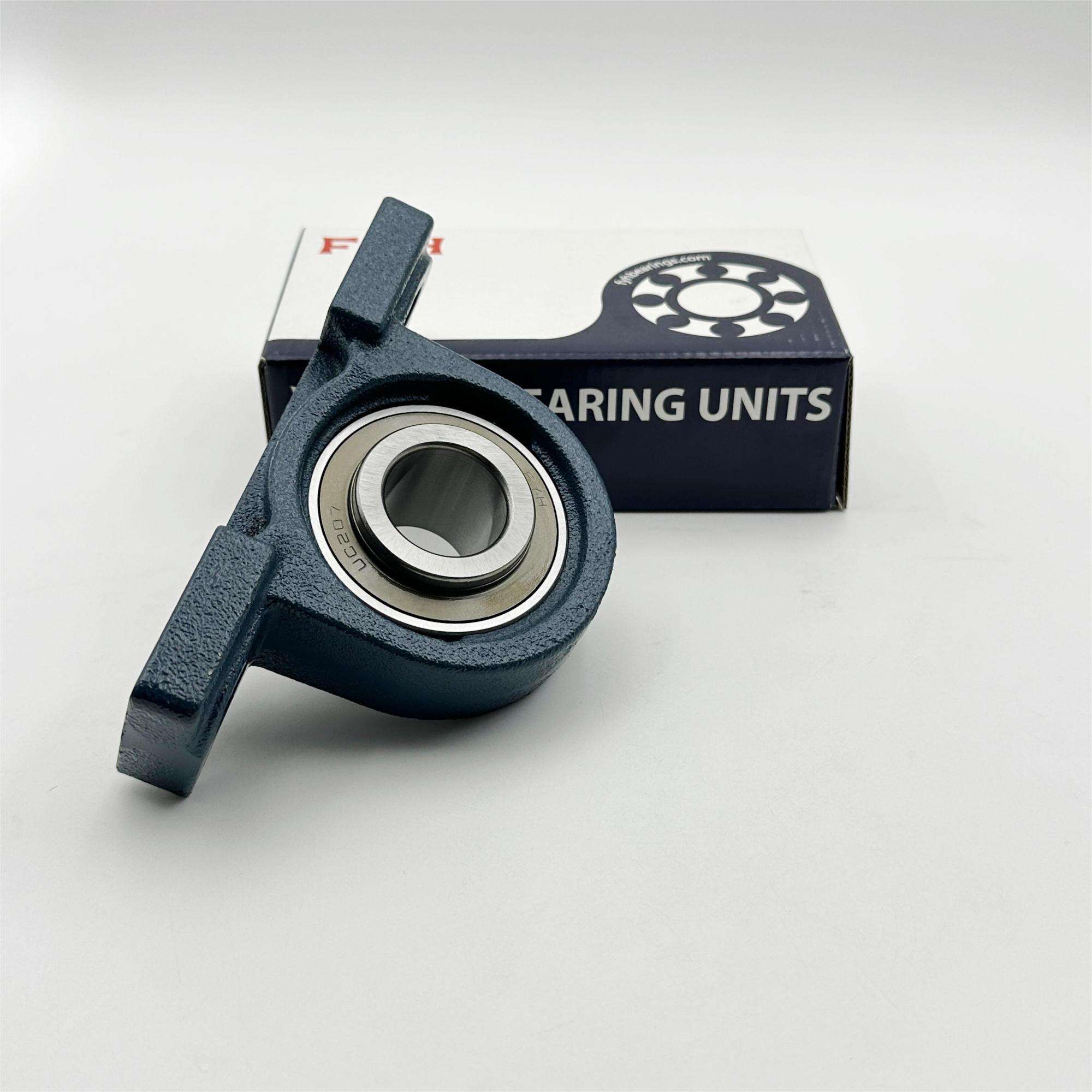

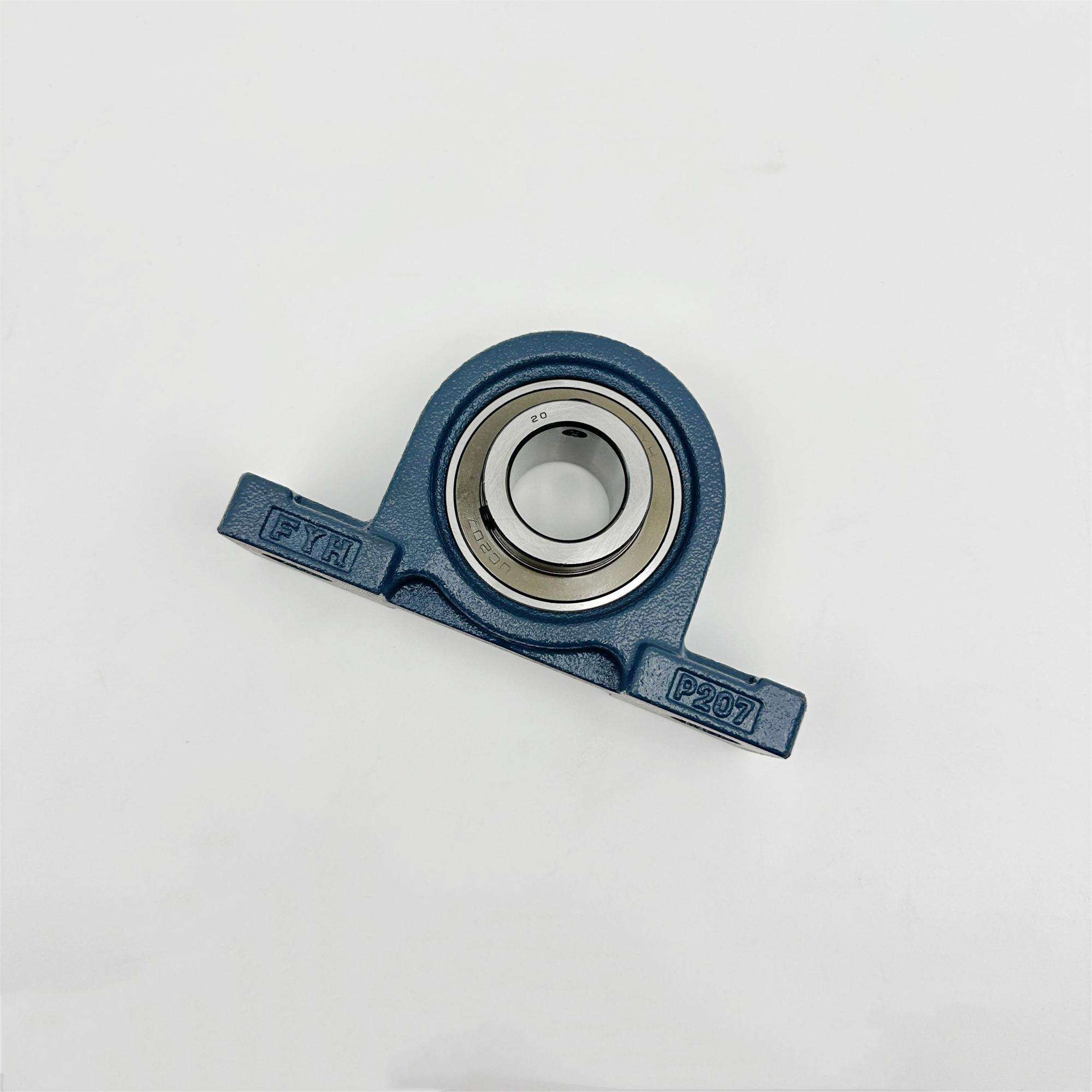

FYH UCP207-20J Two-Bolt Pillow Block Bearing Unit
FYH UCP207-20J is a premium two-bolt diamond-shaped pillow block bearing unit, consisting of a UC207-20 spherical insert bearing and a heavy-duty cast iron P207 housing. The suffix "20J" designates an inch-series specification with a 1-1/4 inch (31.75 mm) shaft diameter, tailored for inch-shaft mounting scenarios in industrial applications. Featuring set screw locking and integrated sealing system, this unit complies with JIS industrial standards and is pre-lubricated at the factory.
FYH UCP207-20J is a premium two-bolt diamond-shaped pillow block bearing unit, consisting of a UC207-20 spherical insert bearing and a heavy-duty cast iron P207 housing. The suffix "20J" designates an inch-series specification with a 1-1/4 inch (31.75 mm) shaft diameter, tailored for inch-shaft mounting scenarios in industrial applications. Featuring set screw locking and integrated sealing system, this unit complies with JIS industrial standards and is pre-lubricated at the factory, delivering reliable radial load support and easy maintenance for diverse operating environments.
Core Dimensions & Weight
| Parameter | Value (Imperial) | Value (Metric) |
|---|---|---|
| Shaft Diameter (d) | 1-1/4 in | 31.75 mm |
| Center Height (H) | 1.875 in | 47.6 mm |
| Housing Length (A) | 6.575 in | 167 mm |
| Housing Width (B) | 1.890 in | 48 mm |
| Bolt Hole Center-to-Center (J) | 5.000 in | 127 mm |
| Mounting Bolt Size | 1/2 in UNC | - |
| Overall Height (H2) | 3.661 in | 93 mm |
| Net Weight | 3.5 lbs | Approx. 1.59 kg |
| Insert Bearing Model | - | UC207-20 |
| Housing Model | - | P207 |
Technical Performance Ratings
| Parameter | Value |
|---|---|
| Basic Dynamic Load Rating (C) | 5,774 lbs (25.7 kN) |
| Basic Static Load Rating (C₀) | 3,460 lbs (15.4 kN) |
| Locking Mechanism | Set screw locking (two set screws on extended inner ring) |
| Seal Type | Double lip contact seals with metal slinger |
| Self-alignment Angle | ±2° |
| Radial Clearance | C3 (Enhanced clearance for general industrial applications) |
| Operating Temperature Range | -20°C to +120°C (-4°F to +248°F) |
| Limiting Speed (Grease Lubrication) | 4,300 r/min |
| Pre-filled Lubricant | High-performance lithium-based grease |
Structural Features & Advantages
- Inch-Series Compatibility: The "20J" suffix is optimized for 1-1/4 inch shafts, perfectly matching inch-standard industrial equipment, ensuring seamless replacement and assembly with existing systems.
- Robust Cast Iron Housing: P207 housing is made of high-strength HT200 gray cast iron, featuring reinforced rib structure for excellent vibration damping and impact resistance, suitable for harsh industrial environments.
- Reliable Set Screw Locking: Two case-hardened alloy steel set screws provide firm shaft clamping, effectively preventing shaft slippage under vibration or frequent start-stop conditions, enabling easy installation and disassembly.
- Efficient Sealing Protection: Double nitrile rubber (NBR) lip seals combined with a metal slinger form a dual protection system, which reliably retains internal lubricant and blocks external dust, debris and moisture, extending bearing service life.
- Excellent Self-Aligning Capability: The spherical outer diameter of the UC207-20 insert bearing allows ±2° angular misalignment compensation, effectively absorbing shaft deflection or installation errors, avoiding additional stress on the bearing.
- Low-Maintenance Design: Factory pre-lubricated with long-lasting lithium-based grease, no additional lubrication is required before initial use. Equipped with a standard grease fitting for easy re-lubrication during maintenance.
Applications
As an inch-series pillow block bearing unit, UCP207-20J is widely used in inch-standard industrial equipment requiring stable radial load support:- Agricultural machinery (augers, hay balers, grain elevators)
- Material handling systems and conveyor lines (inch-standard)
- Food processing and packaging machinery
- Industrial fans, blowers and air compressors
- Woodworking and metalworking machinery
- Mining and construction auxiliary equipment
