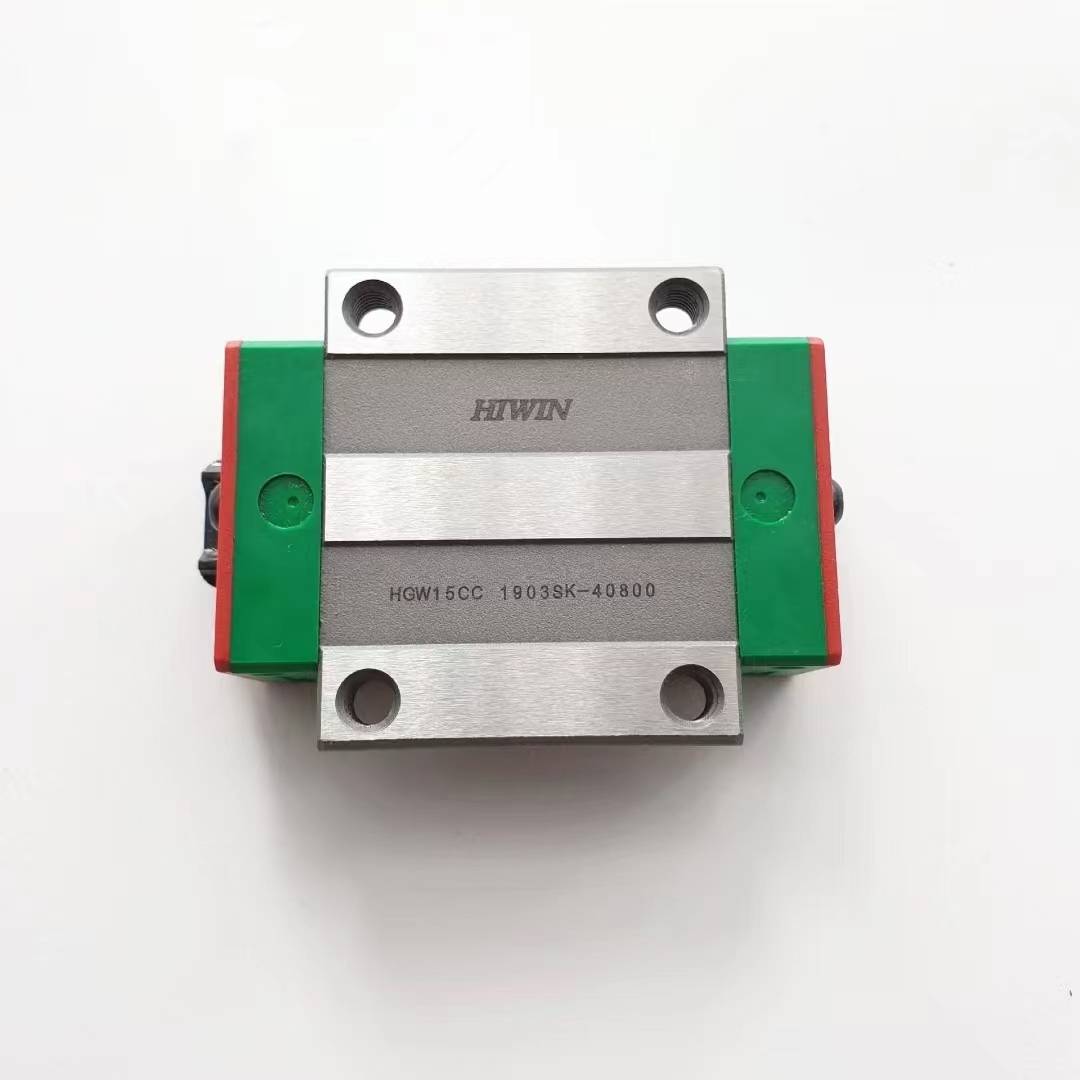

HIWIN HGW15CC Linear Guide Slider
The HGW15CC is a wide flange-type heavy load linear guide slider from HIWIN's HG Series, designed for use with HGR15 profile rails. It features a four-row, 45° contact angle ball design that delivers equal load capacity in radial, reverse radial, and lateral directions, with self-aligning capability to absorb minor installation errors.
The HGW15CC is a wide flange-type heavy load linear guide slider from HIWIN's HG Series, designed for use with HGR15 profile rails. It features a four-row, 45° contact angle ball design that delivers equal load capacity in radial, reverse radial, and lateral directions, with self-aligning capability to absorb minor installation errors. The flange mounting allows for versatile top/bottom installation, making it ideal for applications requiring balanced load distribution and high rigidity in compact spaces.
Key Code Interpretation:
- HGW: Wide flange block, HG Series (Heavy load)
- 15: Nominal rail width (15mm)
- CC: Heavy load capacity, top/bottom mounting option
Core Features
- Four-way equal load capacity (radial, reverse radial, lateral)
- 45° contact angle for optimal load distribution and rigidity
- Self-aligning to compensate for minor parallelism errors between mounting surfaces
- Ball retainer design prevents balls from falling out during assembly
- Versatile flange mounting (top or bottom) for flexible integration
- Available with preload options (Z0: Light, ZA: Medium, ZB: Heavy) and accuracy classes (C, H, P, SP, UP)
- Compatible with HGR15 profile rails (15mm width, 15mm height)
Technical Specifications
Dimensions (mm)
- Total height (H): 24
- Height above rail (H₁): 4.3
- Rail contact height (N): 16
- Slider width (W): 47
- Overall length (L): 61.4
- Effective length (L₁): 39.4
- Mounting hole spacing (B): 38
- Mounting hole edge distance (B₁): 4.5
- Inner mounting hole spacing (C): 30
- Mounting hole diameter (G): 5.3
- Mounting bolt size (M): M5
- Mass: 0.17 kg
Load Ratings (N)
- Basic dynamic load rating (Cr): 14,700 (14.7 kN)
- Basic static load rating (Cor): 23,470 (23.47 kN)
Preload & Accuracy Options
Preload Classes (Standard)
- Z0: Light preload (0.00–0.02)
- ZA: Medium preload (0.05–0.07)
- ZB: Heavy preload (0.09–0.11)
Accuracy Classes
- C: Normal accuracy
- H: High accuracy
- P: Precision
- SP: Super Precision
- UP: Ultra Precision
Example Part Numbers
- HGW15CCZ0C: Z0 preload, C accuracy (Article No.: 5-001097)
- HGW15CCZAH: ZA preload, H accuracy (Article No.: 5-001103)
- HGW15CCZBC: ZB preload, C accuracy
Material & Hardness
- Slider body: High-strength alloy steel
- Bearing balls: Chrome steel (SUJ2 / 100Cr6 equivalent)
- Raceways: Through-hardened to HRC 60–66 for maximum wear resistance and fatigue life
- Surface treatment: Black oxide finish for corrosion protection
Installation & Lubrication
- Mounting: Flange design enables top or bottom installation
- Recommended mounting torque: Follow HIWIN official guidelines
- Self-aligning range: Compensates for minor parallelism errors
- Lubrication: Standard grease nipple for manual lubrication; optional E2 self-lubricating variant available
- Standard seals: SS (Scraper Seal) for dust protection
Application Areas
- Precision CNC machine tools
- Industrial automation systems
- Robotic gantries and arms
- Semiconductor manufacturing equipment
- Medical devices
- Material handling systems
- Any application requiring high rigidity, precision, and balanced load capacity in a compact flange-mount design
