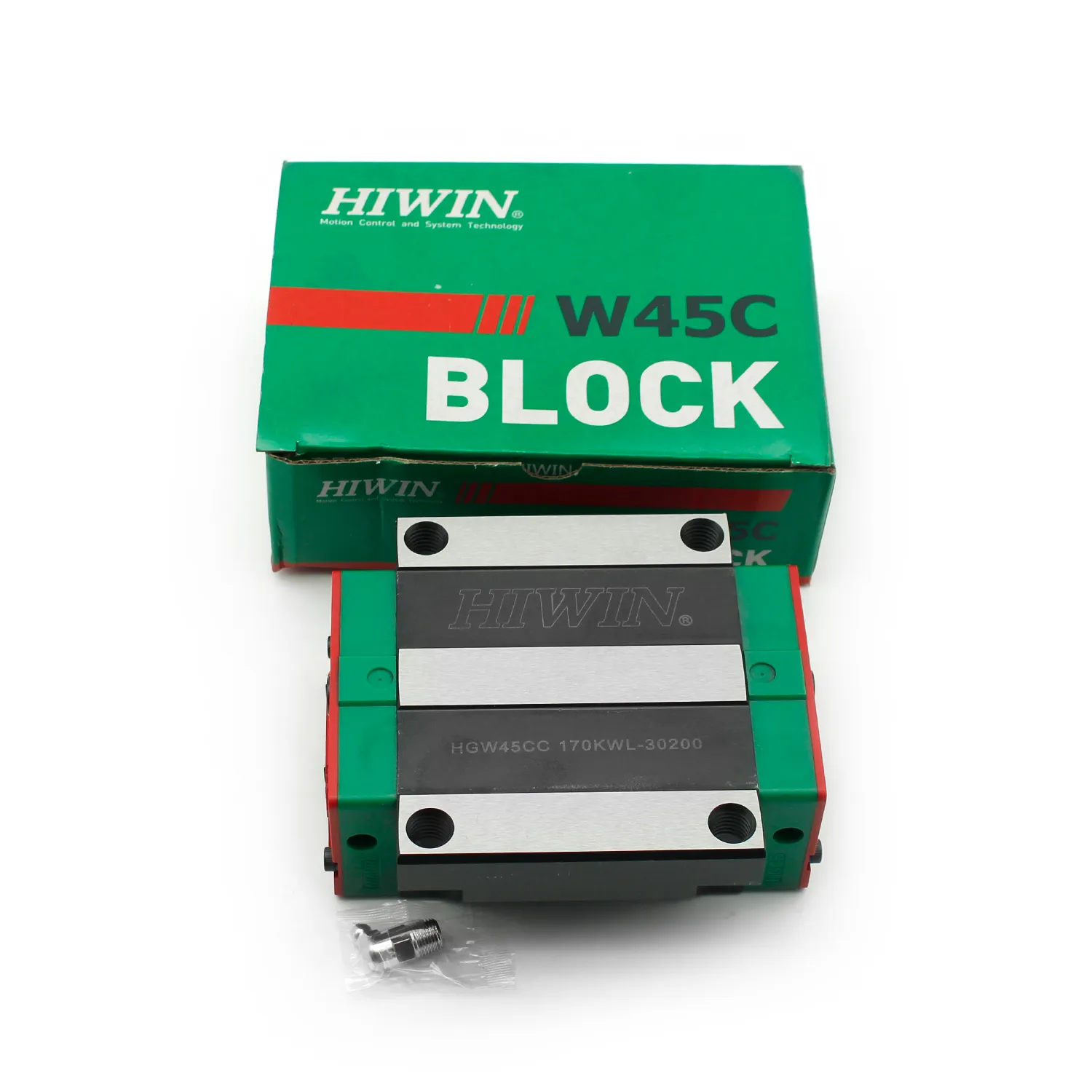

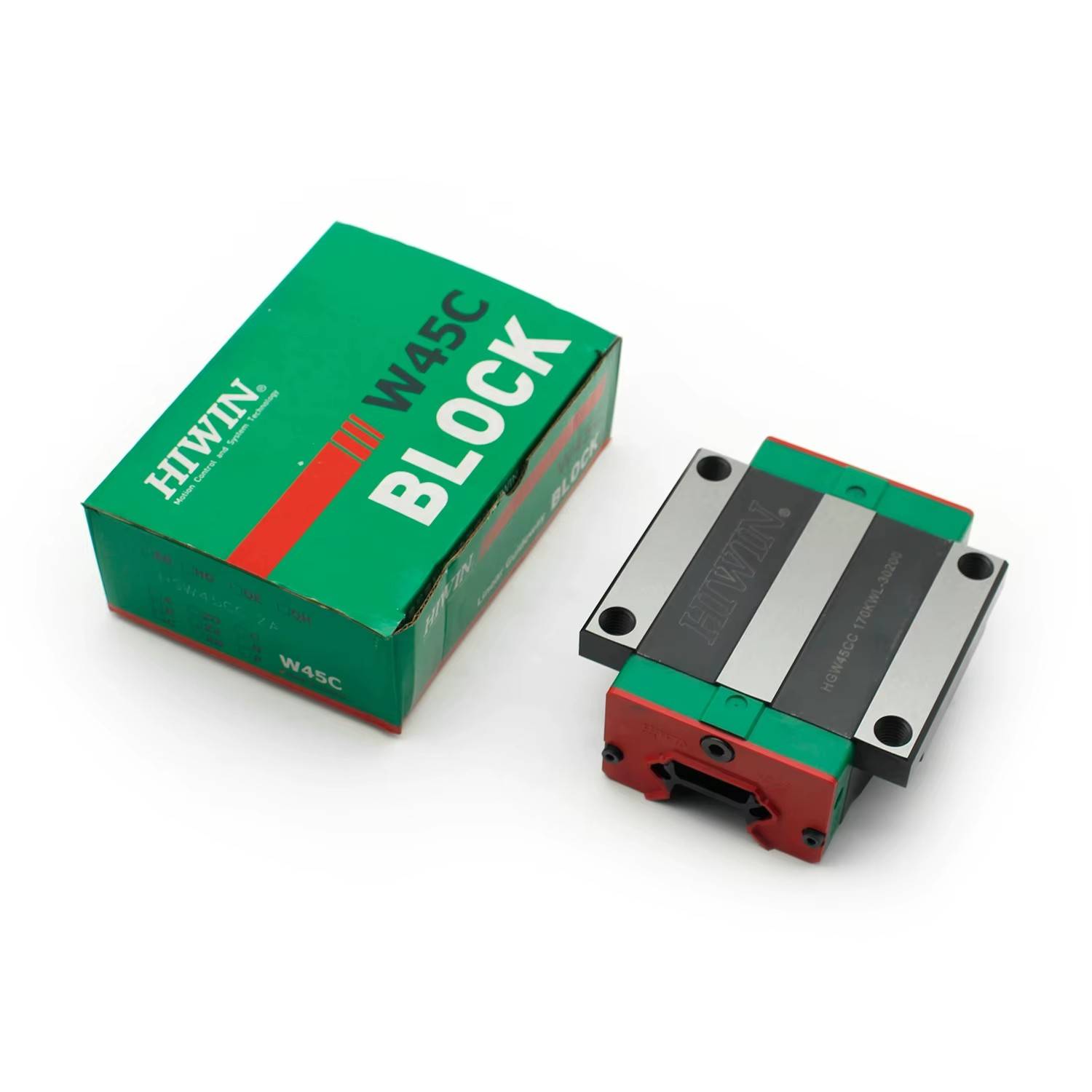

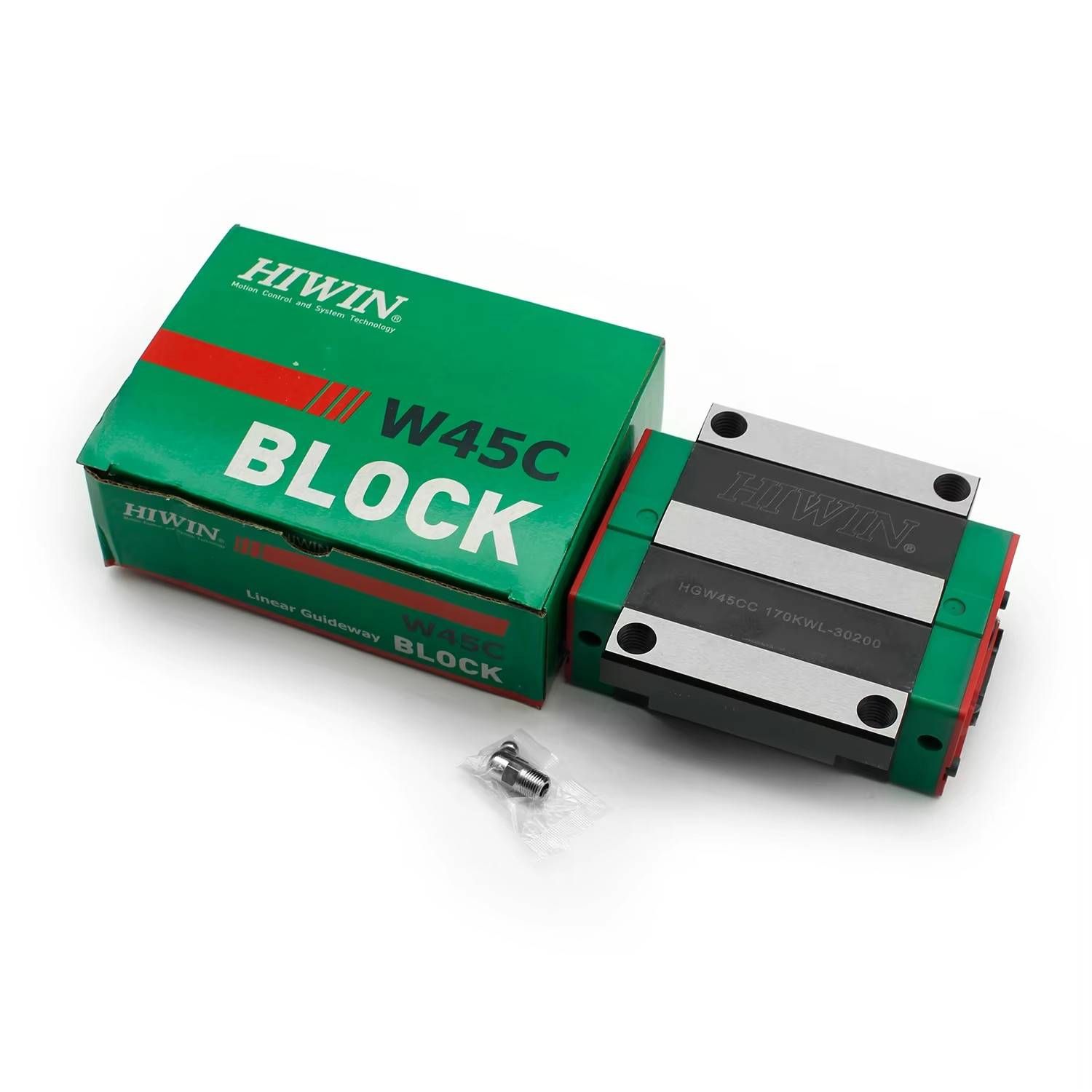

HIWIN HGW45CC Linear Guide Slider

Model Code Breakdown:

• HGW: Flange block, HG Series (Heavy load)
• 45: Nominal rail width (45mm)
• CC: Standard load capacity, regular block configuration

Core Features

1. Four-way equal load capacity (radial, reverse radial, lateral) for balanced performance under multi-directional forces
2. 45° contact angle optimizes load distribution and structural rigidity, enabled by circular-arc groove design
3. Self-aligning capability compensates for minor parallelism errors between mounting surfaces, simplifying installation
4. Ball retainer design prevents balls from dislodging during rail separation, enabling safe and easy assembly
5. Flange-type construction allows top AND bottom mounting flexibility for diverse application requirements
6. Available with preload options (Z0: Light, ZA: Medium, ZB: Heavy) and accuracy classes (C, H, P, SP, UP)
7. Compatible with HGR45 profile rails (45mm width)
8. Standard SS (Scraper Seal) for dust protection; optional enhanced seals (DD, ZZ, KK, etc.) available separately

Technical Specifications

Dimensions (mm)

• Total height (H): 60
• Height above rail (H₁): 9.5
• Rail contact height (N): 37.5
• Slider width (W): 120
• Overall length (L): 139.4
• Effective length (L₁): 97
• Mounting hole spacing (B): 100
• Mounting hole edge distance (B₁): 10
• Inner mounting hole spacing (C): 80
• K₁: 13
• K₂: 10
• Mounting hole diameter (G): 12.9
• Mounting bolt size (M): M12
• T: 15.1
• T₁: 22
• T₂: 15
• H₂: 8.5
• H₃: 20.5
• Mass: 2.79 kg

Load Ratings & Static Moments

• Basic dynamic load rating (Cr): 103,800 N (103.8 kN)
• Basic static load rating (Cor): 146,710 N (146.71 kN)
•


Preload & Accuracy Options

Preload Classes (Standard)

• Z0: Light preload (0.00–0.02)
• ZA: Medium preload (0.05–0.07)
• ZB: Heavy preload (0.09–0.11)

Accuracy Classes

• C: Normal accuracy
• H: High accuracy
• P: Precision
• SP: Super Precision
• UP: Ultra Precision

Official Article Numbers

• HGW45CCZ0H (Z0 preload, H accuracy): 5-001256
• HGW45CCZAH (ZA preload, H accuracy): 5-001260
• HGW45CCZBH (ZB preload, H accuracy): 5-001263

Material & Hardness

• Slider body: High-strength alloy steel
• Bearing balls: Chrome steel (SUJ2 / 100Cr6 equivalent)
• Raceways: Through-hardened to HRC 60–66 for maximum wear resistance and extended fatigue life
• Surface treatment: Black oxide finish for corrosion protection

Installation & Accessories

Mounting Notes

• Flange block design enables secure top OR bottom mounting configuration
• Four M12 mounting holes for rigid attachment
• Self-aligning range accommodates minor parallelism errors between mounting surfaces
• Recommended mounting torque: Follow HIWIN official installation guidelines

Lubrication & Sealing

• Standard lubrication nipple for grease/oil lubrication
• Optional E2 self-lubricating variant available, extending relubrication intervals significantly
• Standard SS (Scraper Seal) base seals; optional enhanced seals (DD, ZZ, KK, etc.) available separately

Compatible Rail

• Matches HGR45 profile rails (45mm width)

Application Areas

• Heavy-duty CNC machine tools
• Industrial automation systems and robotic gantries
• Semiconductor and electronics manufacturing equipment
• Injection molding machines
• Material handling systems with heavy payloads
• Precision measuring instruments requiring enhanced rigidity
• Any application requiring robust load capacity and versatile flange mounting flexibility
