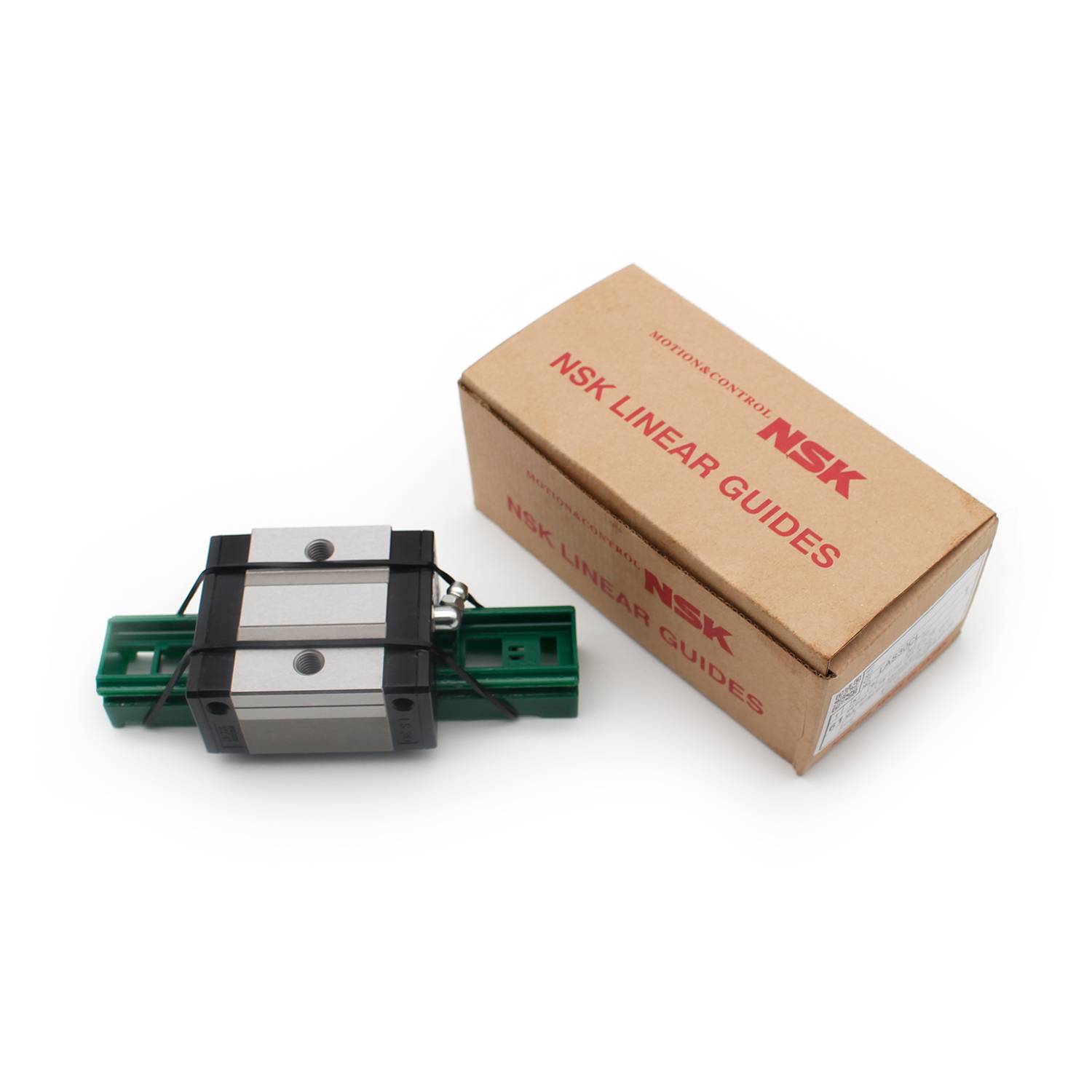

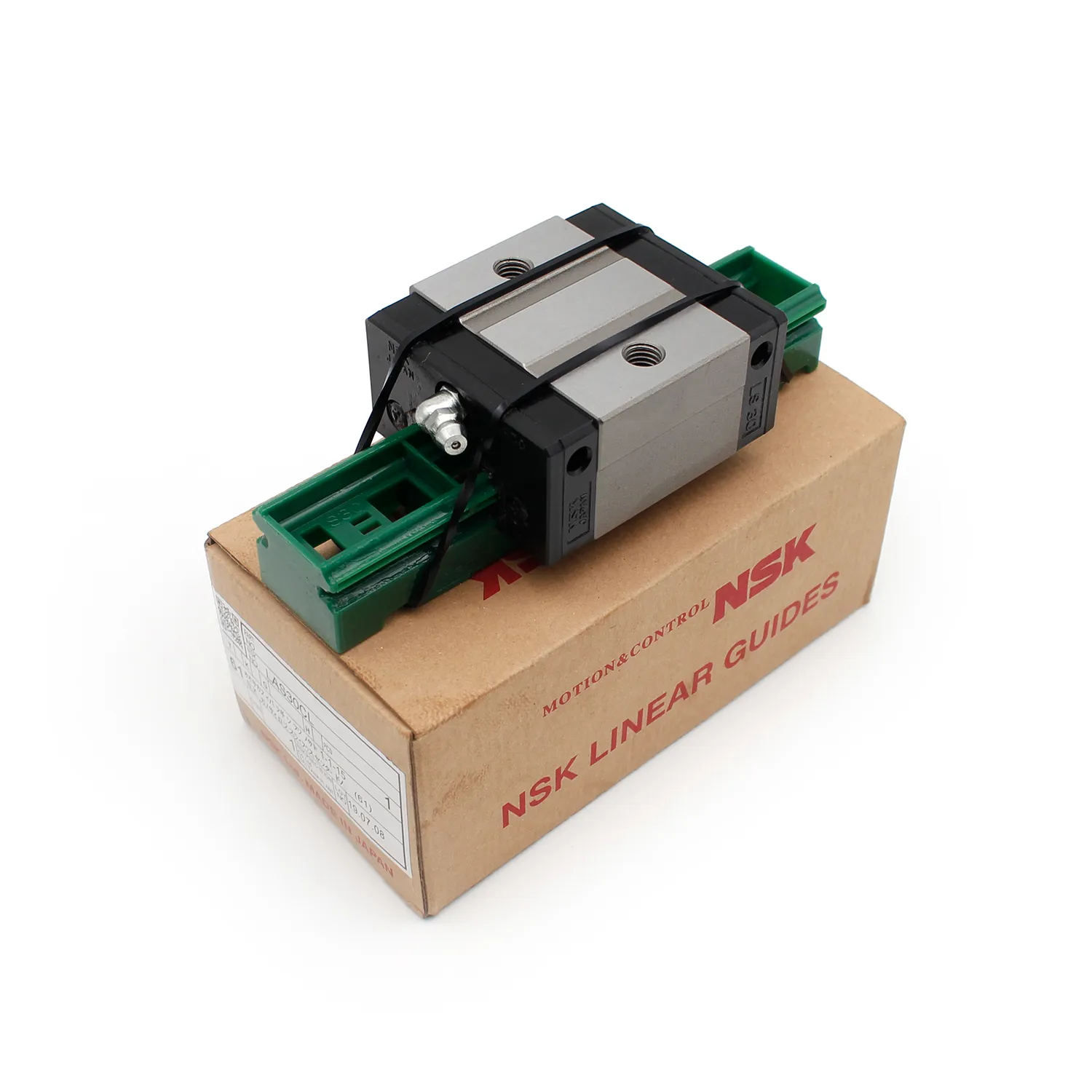

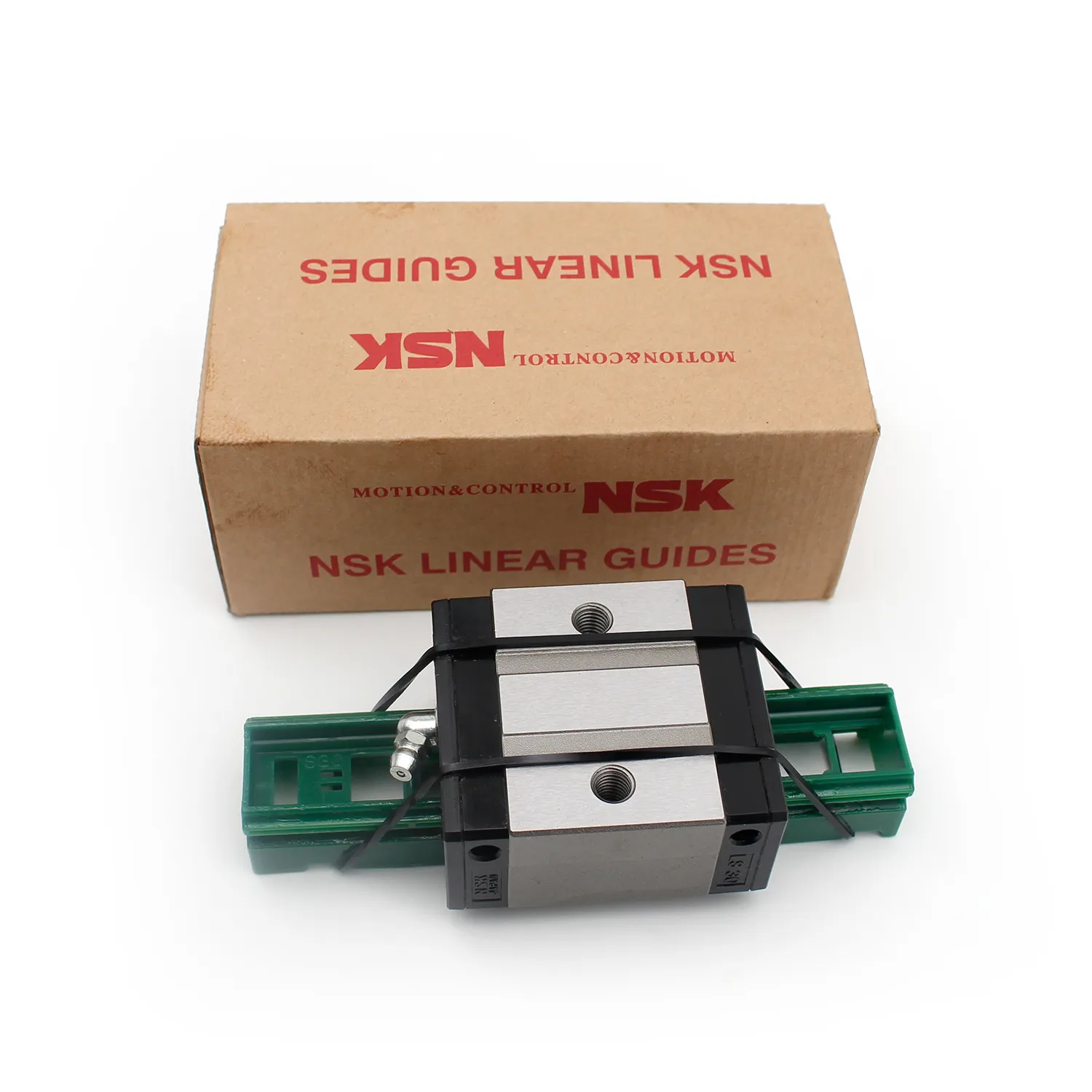

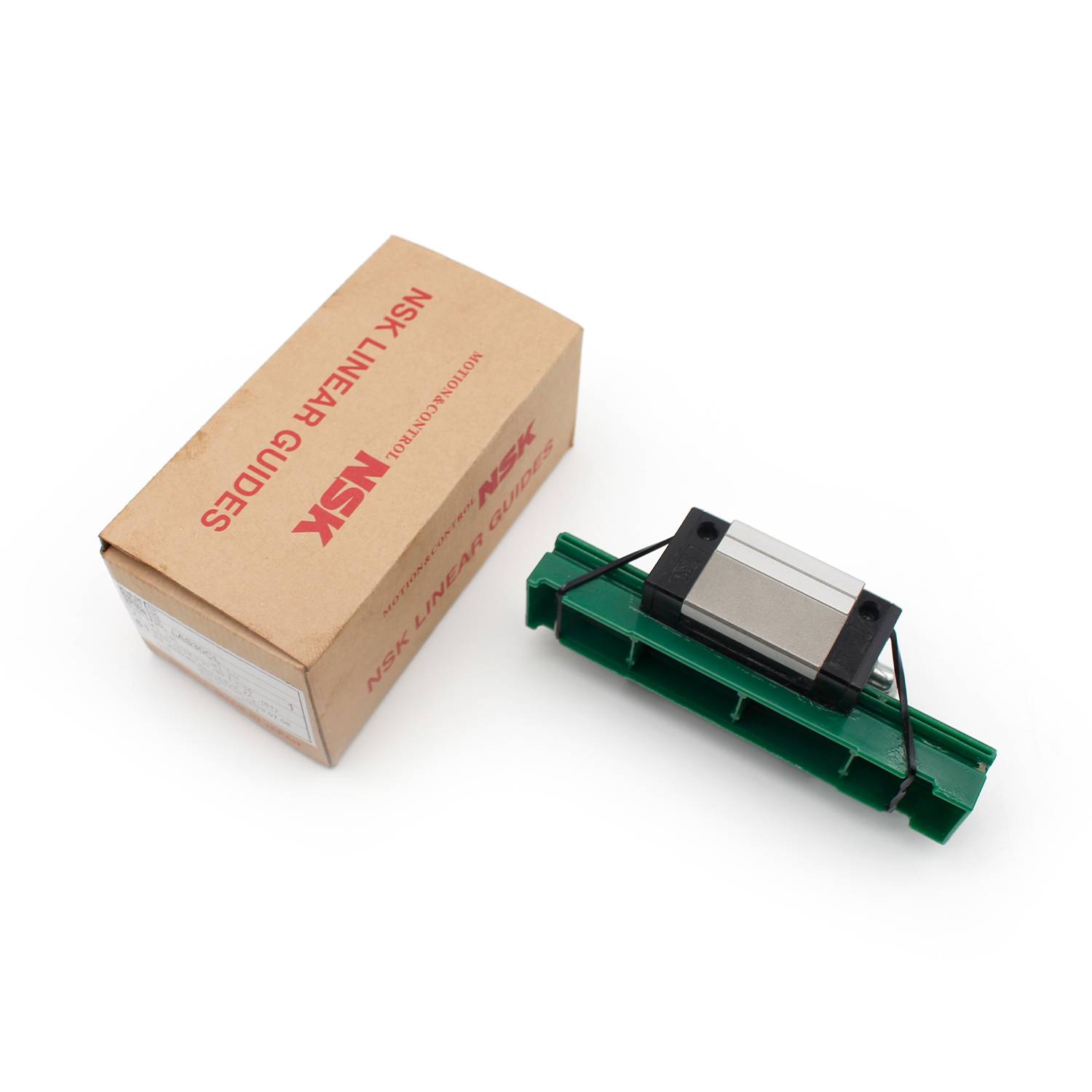

NSK LAS30CL Linear Guide
The NSK LAS30CL is a standard square-type (non-flanged) linear guide block from the LAS/LS series, designed for general industrial automation and precision machinery. It features a 4-row Gothic arch ball groove design (3-line grooves on each side) that delivers equal load capacity and rigidity in all four directions (up, down, left, right). This structure offers high rigidity, shock resistance, smooth motion, and excellent accuracy.
1. Product Overview
The NSK LAS30CL is a standard square-type (non-flanged) linear guide block from the LAS/LS series, designed for general industrial automation and precision machinery. It features a 4-row Gothic arch ball groove design (3-line grooves on each side) that delivers equal load capacity and rigidity in all four directions (up, down, left, right). This structure offers high rigidity, shock resistance, smooth motion, and excellent accuracy, making it ideal for applications requiring stable linear movement.
2. Core Technical Specifications (Official)
2.1 Load Ratings (N)
- Basic Dynamic Load Rating (C): 23,900 N
- Basic Static Load Rating (C₀): 44,000 N
2.2 Dimensional Data (mm)
| Parameter | Value |
|---|---|
| Rail Width (W) | 28 |
| Rail Height | 23 |
| Assembly Height (H) | 42 |
| Slider Width (W1) | 60 |
| Slider Length (L) | 67.4 |
| Mounting Hole Pitch (P) | 40 |
| Slider Mounting Hole | M8 x 1.25 x 12 (thread) |
| Rail Mounting Hole | 7 x 11 x 9 |
| Rail Hole Pitch | 80 |
2.3 Physical & Performance Parameters
- Material: High-carbon chrome bearing steel (Standard)
- Standard Accuracy Grade: Normal (N)
- Preload: Standard (Z) / Available in Z0 (no preload), ZA (medium), ZB (heavy)
- Operating Temperature: -40°C to +80°C
- Weight (Slider only): Approx. 1.2 kg
- Max. Travel Speed: Up to 1.5 m/s (depending on preload and lubrication)
- Standard Rail Length: Up to 3500 mm
3. Key Features (Official)
- Four-directional Equal Load: 4-row ball circuit design provides uniform rigidity and load capacity in all directions.
- High Rigidity & Shock Resistance: Optimized Gothic arch groove geometry distributes stress, enhancing resistance to impact loads.
- Self-alignment Capability: Contact geometry absorbs installation errors and ensures smooth movement.
- Ball Retainer System: Prevents steel balls from falling out when the slider is separated from the rail for safe handling.
- Dust-proof Design: Equipped with standard end seals and side seals to prevent contamination.
- Interchangeability: Rail and block are interchangeable, allowing for flexible assembly and short delivery times.
- Lubrication: Compatible with NSK K1™ lubrication units for maintenance-free operation.
4. Applications
Suitable for: General industrial machinery, automation lines, semiconductor manufacturing equipment, measuring instruments, and various precision machines.
