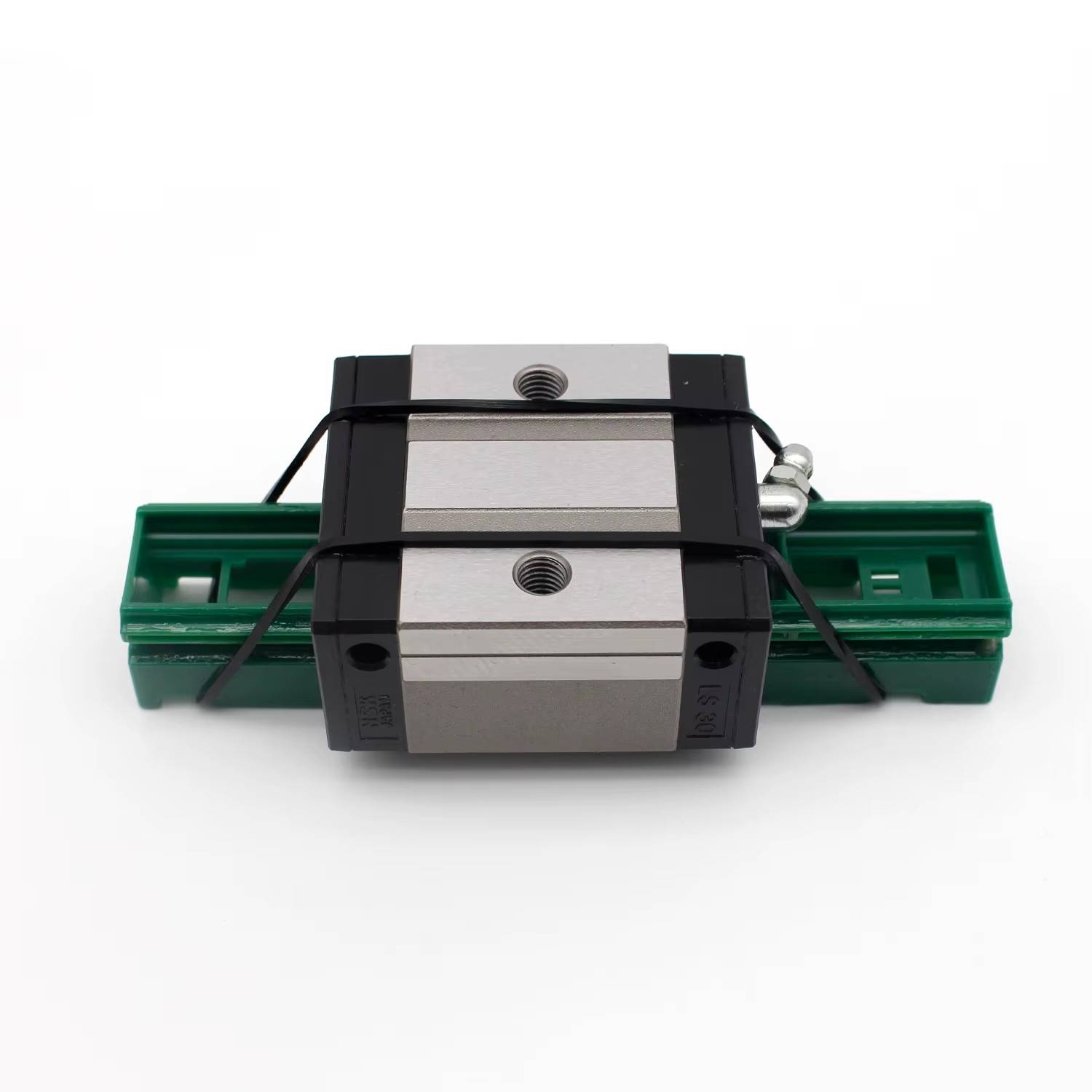

NSK LS15JM Linear Guide
The NSK LS15JM is a compact, flange-type linear motion guide from NSK's LS series. Engineered for space-constrained industrial applications, it features a 4-row Gothic arch groove design with a 50° contact angle, delivering balanced rigidity and load capacity for moderate-load, high-precision scenarios. The JM-type flange slider incorporates side-mounted mounting holes for flexible installation, ensuring stable performance and easy integration into compact automation systems, general machinery,
Product Overview
The NSK LS15JM is a compact, flange-type linear motion guide from NSK’s LS series. Engineered for space-constrained industrial applications, it features a 4-row Gothic arch groove design with a 50° contact angle, delivering balanced rigidity and load capacity for moderate-load, high-precision scenarios. The JM-type flange slider incorporates side-mounted mounting holes for flexible installation, ensuring stable performance and easy integration into compact automation systems, general machinery, and precision equipment.
Core Official Features (NSK Global Catalog)
- 4-Row Gothic Arch Grooves: 4-point contact structure provides equal load capacity in radial, reverse-radial, and lateral directions, with strong resistance to moment loads.
- 50° Optimized Contact Angle: Enhances vertical load capacity and rigidity, suitable for medium-duty applications requiring stable precision.
- High Impact Resistance: The bottom groove is offset; top two rows handle normal loads, while the bottom rows engage under high impact, ensuring reliable performance under shock.
- Self-Aligning Capability: Absorbs minor installation surface errors, reducing assembly effort and maintaining consistent accuracy.
- K1™ Maintenance-Free Lubrication: Compatible with NSK K1 lubrication units for long-term, low-maintenance operation.
- Interchangeable Dimensions: Conforms to global dimensional standards, enabling easy replacement and system integration with legacy series.
- Wide Option Range: Available in multiple accuracy and preload grades to suit diverse application needs.
Official Dimensional Specifications (mm, NSK Official Data)
| Parameter | Value |
|---|---|
| Slider Height (H) | 19.4 |
| Slider Width (W) | 52.0 |
| Slider Length (L) | 40.4 |
| Rail Width (W1) | 15.0 |
| Rail Height (H1) | 12.5 |
| Slider Mounting Hole | M5 × 0.8 × 7 |
| Rail Mounting Hole Pitch | 60 |
| Rail Mounting Hole | φ7 × 11 |
| Grease Nipple | PT1/8 |
Official Performance Parameters (NSK Official Data)
| Parameter | Value |
|---|---|
| Basic Dynamic Load Rating (C) | 8.4 kN |
| Basic Static Load Rating (C0) | 13.4 kN |
| Static Permissible Moment (MR) | 0.20 kN·m |
| Static Permissible Moment (MP) | 0.20 kN·m |
| Static Permissible Moment (MY) | 0.37 kN·m |
| Mass of Slider | 0.17 kg |
| Mass of Rail | 0.55 kg/m |
| Standard Rail Length | Up to 3000 mm |
Standard Specifications
- Accuracy Grades: Normal (PN), High (PH), Precision (SP), Super Precision (UP)
- Preload Grades: Z0 (Clearance), Z1 (Light Preload), Z3 (Medium Preload)
- Material: High-carbon chromium bearing steel (standard); stainless steel optional
- Seals: Standard double seals (UU); optional low-dust seals (SS)
- Lubrication: Standard grease lubrication; K1™ maintenance-free unit available
- Surface Treatment: Black oxide finish (standard); fluoride hard chrome plating optional
Typical Applications
- Compact automated machinery
- Semiconductor manufacturing equipment
- Precision measuring instruments
- Medical devices
- Packaging machinery
- Small-scale assembly lines & handling systems
- General industrial machinery
