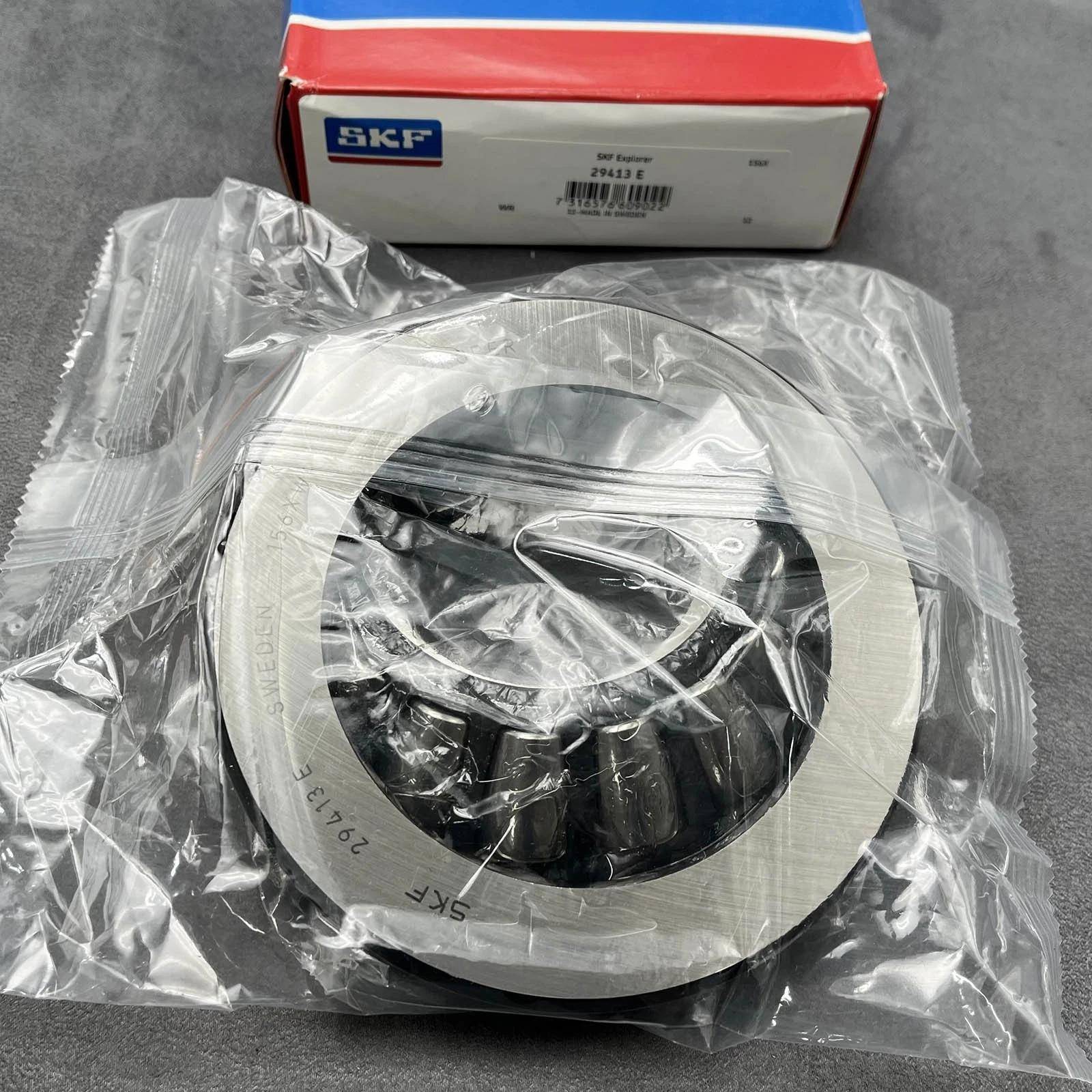

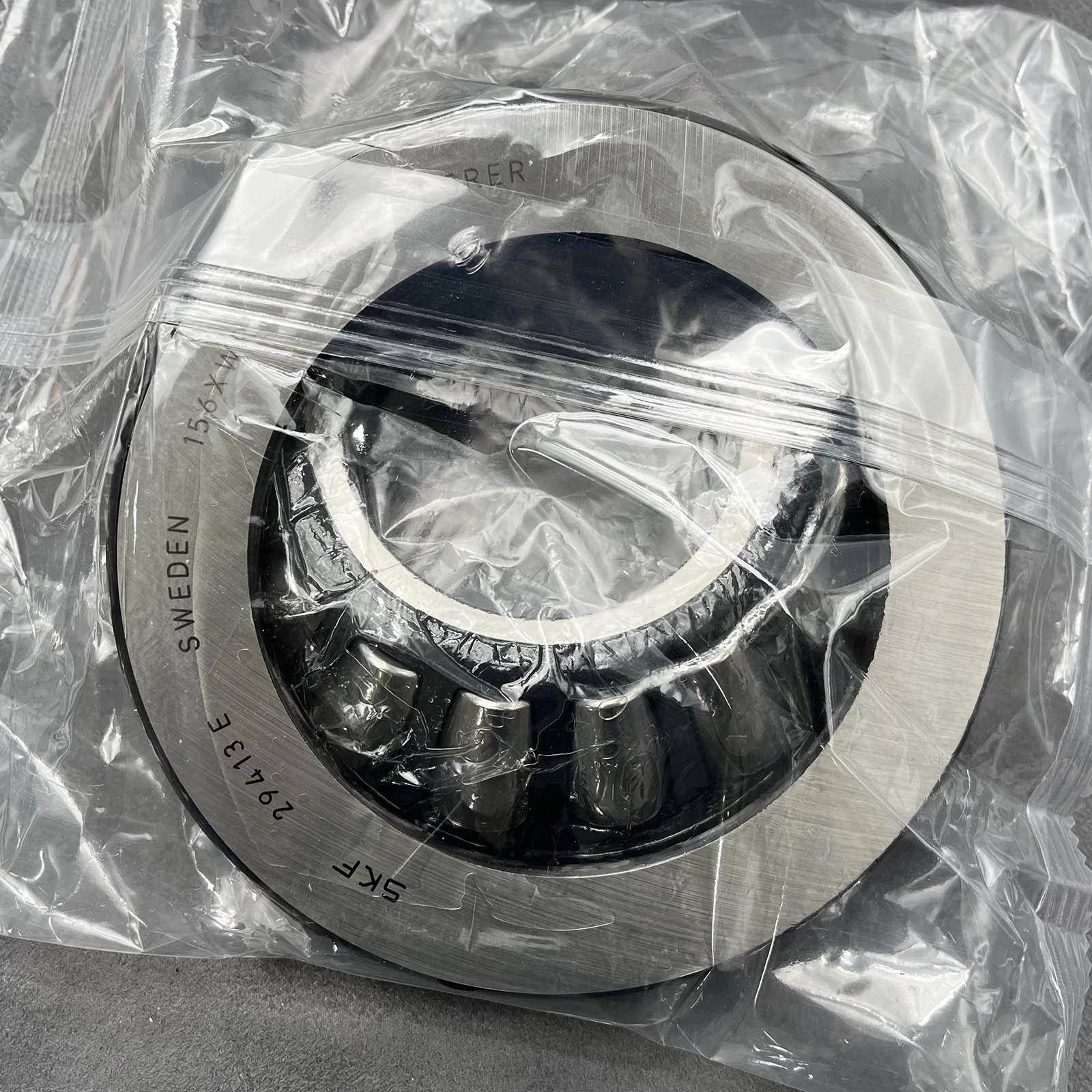

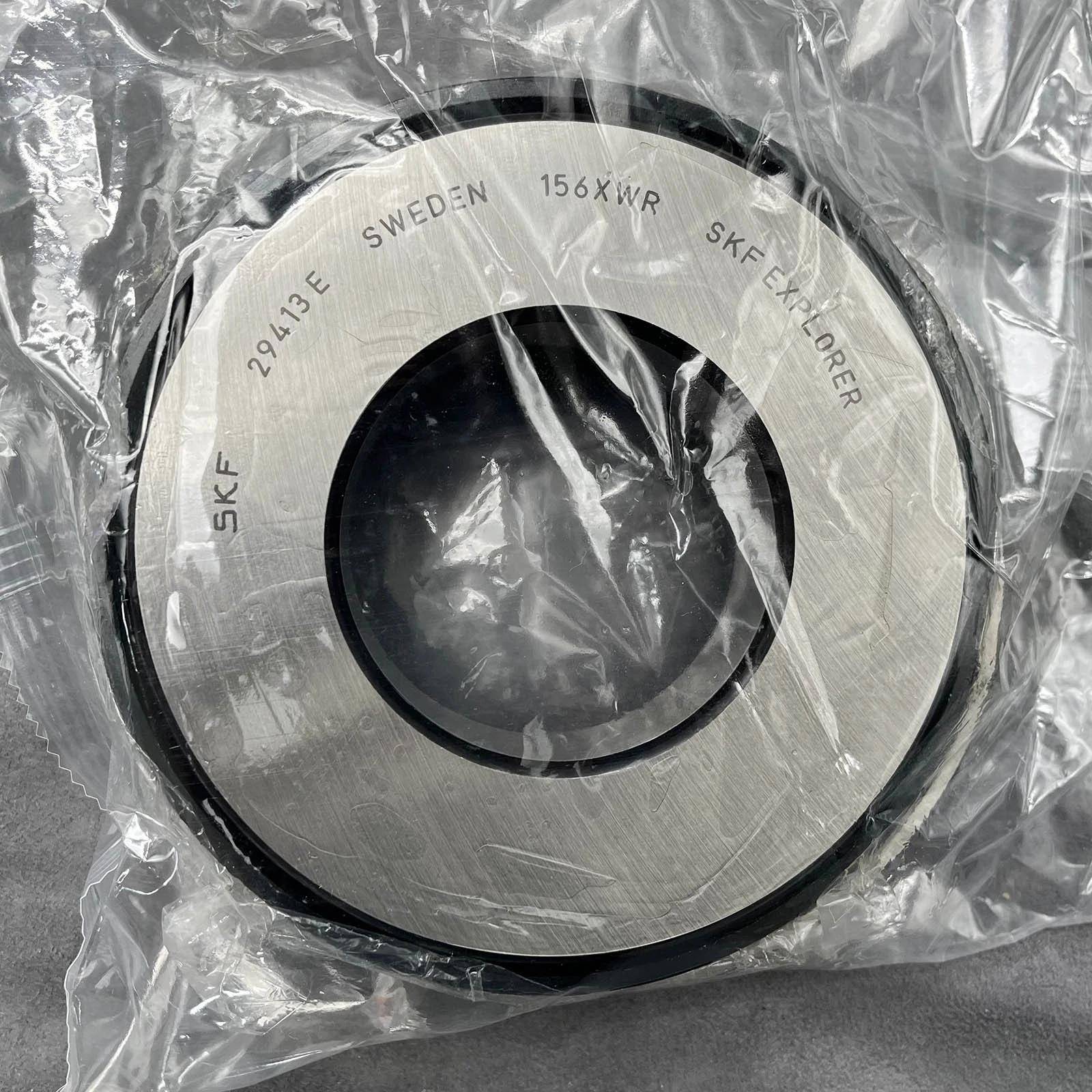

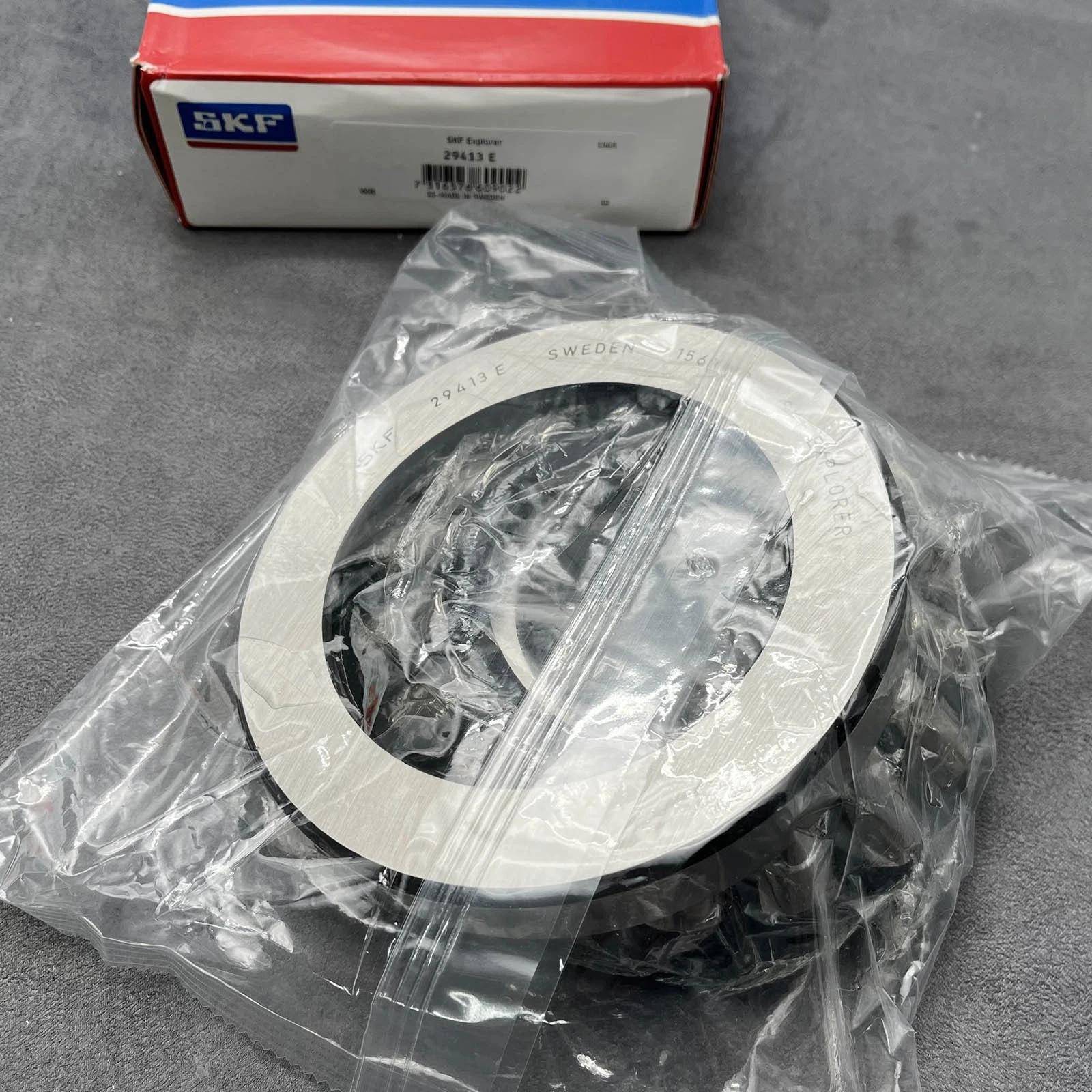

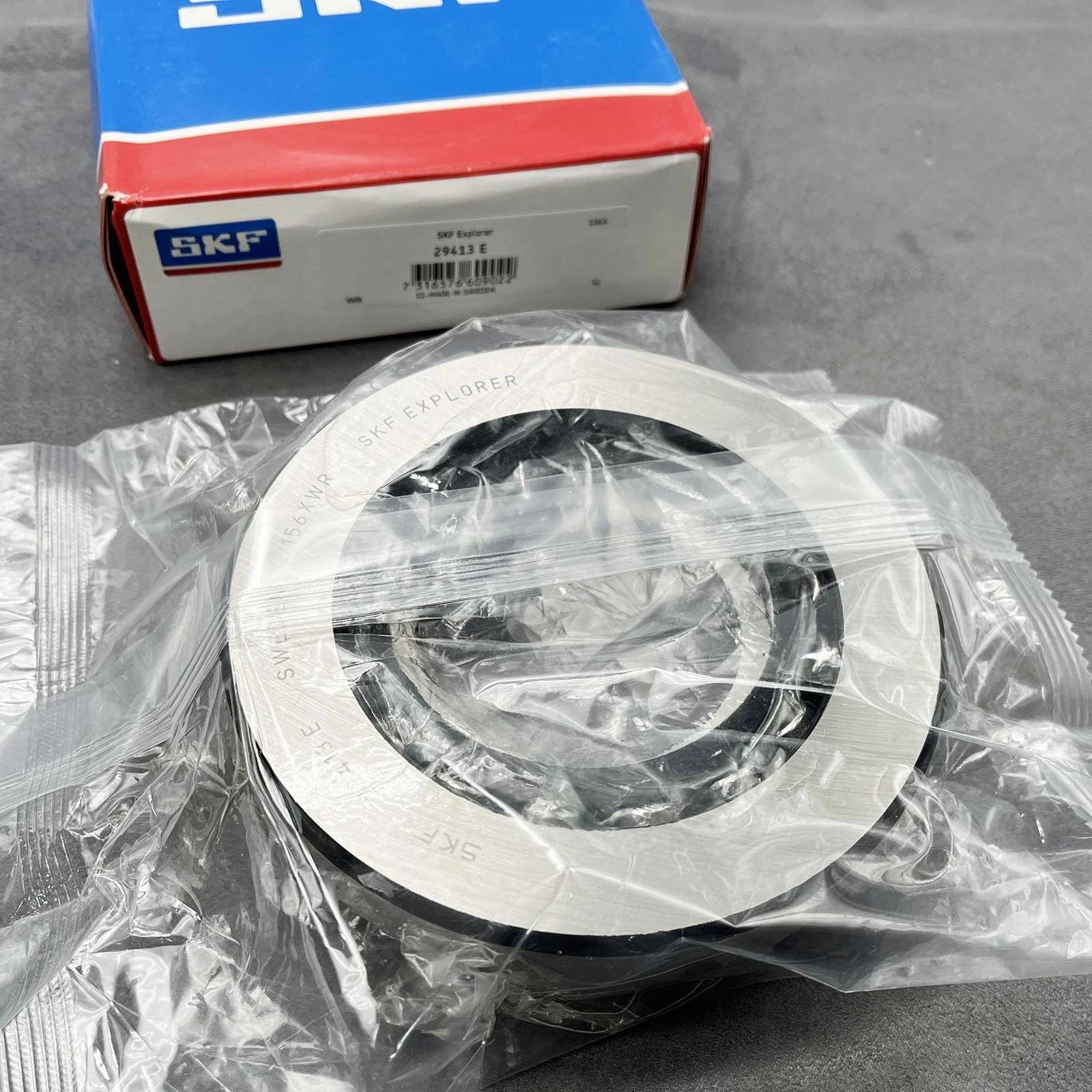

SKF 29413E spherical roller thrust bearings 65x140x45mm
SKF 29413E is a high-performance spherical roller thrust bearing belonging to the SKF Explorer series, designed to accommodate heavy axial loads in one direction while handling moderate radial loads simultaneously. It is engineered with optimized raceways and asymmetrical rollers, ensuring excellent load distribution and operational reliability in demanding industrial applications.
SKF 29413E is a high-performance spherical roller thrust bearing belonging to the SKF Explorer series, designed to accommodate heavy axial loads in one direction while handling moderate radial loads simultaneously. It is engineered with optimized raceways and asymmetrical rollers, ensuring excellent load distribution and operational reliability in demanding industrial applications.
Core Specifications
| Parameter | Value |
|---|---|
| Bearing Type | Spherical Roller Thrust Bearing |
| Inner Diameter (d) | 65 mm |
| Outer Diameter (D) | 140 mm |
| Height (H) | 45 mm |
| Basic Dynamic Load Rating (C) | 455 kN |
| Basic Static Load Rating (C0) | 1080 kN |
| Reference Speed | 2600 r/min |
| Limiting Speed | 4800 r/min |
| Fatigue Load Limit (Pu) | 137 kN |
| Minimum Axial Load Factor (A) | 0.11 |
| Mass | 3.2 kg |
| Cage Material | Sheet steel |
| Operating Temperature Range | -30°C to +200°C |
| Tolerance Class | P0 (Normal) |
Key Features and Advantages
- High Load Capacity: Capable of withstanding extremely heavy axial loads and moderate radial loads, making it ideal for heavy machinery, gearboxes, and vertical shaft applications.
- Self-Aligning Capability: The spherical design allows for angular misalignment (up to 2°), compensating for shaft deflections and mounting errors.
- SKF Explorer Performance: Incorporates SKF’s premium Explorer technology, delivering enhanced fatigue life, reduced friction, and improved operational efficiency compared to standard bearings.
- Robust Construction: The sheet steel cage ensures durability and maintains roller spacing for consistent performance under high speeds and loads.
- Cost-Effective Reliability: Engineered for long service life with minimal maintenance, reducing total operational costs in industrial settings.
Typical Applications
- Heavy-duty gearboxes and reducers
- Vertical electric motors and generators
- Presses and rolling mills
- Wind turbine main shafts
- Marine propulsion systems
- Mining and construction equipment
Installation and Maintenance Tips
- Mount with proper shaft and housing fits (standard tolerance class P0) to prevent excessive clearance or preload.
- Ensure correct axial load application (minimum load factor A=0.11) to avoid roller skidding and premature wear.
- Use recommended lubricants (grease or oil) compatible with operating temperatures and speeds; re-lubricate per SKF guidelines for extended service life.
- Follow SKF’s mounting procedures, including clean workspaces, proper heating/cooling for interference fits, and accurate alignment checks.
