SKF bearings 6206 2RS1
The SKF 6206 2RS1 is a widely used deep groove ball bearing, highly recognized in industrial and civilian fields. As a core model of SKF’s 6200 series, this bearing combines stable performance and easy installation, making it ideal for general medium-load applications.
The SKF 6206 2RS1 is a widely used deep groove ball bearing, highly recognized in industrial and civilian fields. As a core model of SKF’s 6200 series, this bearing combines stable performance and easy installation, making it ideal for general medium-load applications.

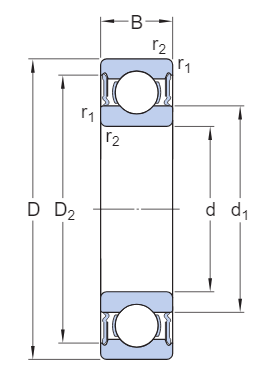

Its standard dimensions are 30mm (inner diameter), 62mm (outer diameter) and 16mm (width). The suffix "2RS1" indicates two low-friction rubber seals on both sides, which can effectively prevent the intrusion of dust, debris and moisture, while well retaining the pre-filled lubricant to reduce maintenance needs.
Made of high-quality bearing steel through SKF’s rigorous precision manufacturing process, it can operate stably within the temperature range of -30℃ to 120℃. Typical applications include electric motors, water pumps, fans, conveyors, small agricultural machinery and household appliances.
In short, the SKF 6206 2RS1 is a cost-effective and reliable bearing solution, perfectly meeting the basic sealing and load-bearing requirements of most general-purpose mechanical equipment.
| Item | 6206 2RS1 |
| Type | deep groove ball bearing |
| Brand | SKF |
| Country of origin | China |
| Bore diameter d | 30 mm |
| Outside diameter D | 62 mm |
| Width B | 16 mm |
| Basic dynamic load rating, radial | 20.3 kN |
| Basic static load rating, radial | 11.2 kN |
| Fatigue load limit, radial | 0.475 kN |
| Limiting speed | 8000 r/min |
| Weight | 0.2 kg |
| Application | electric motors, pumps, fans, conveyors, agricultrual machinery, home appliances etc. |
