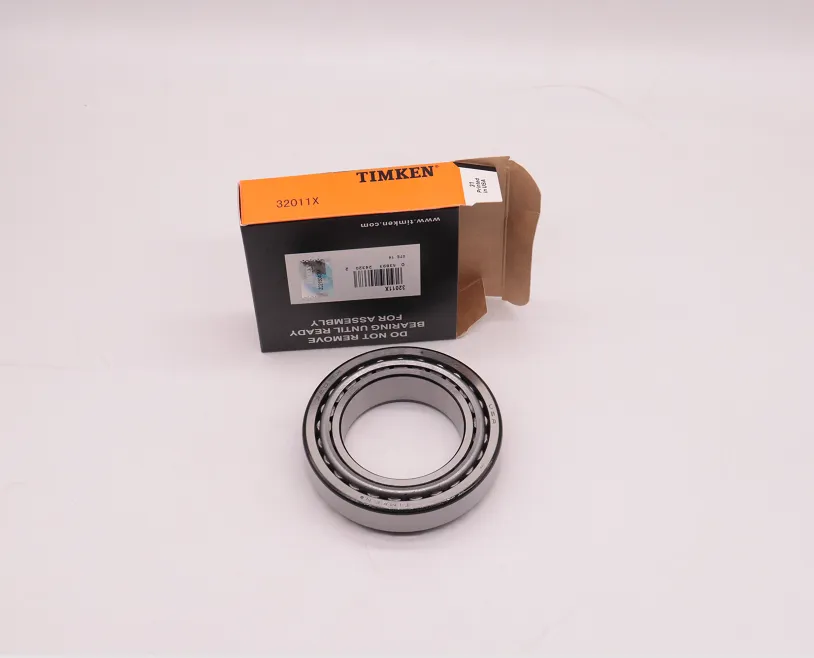

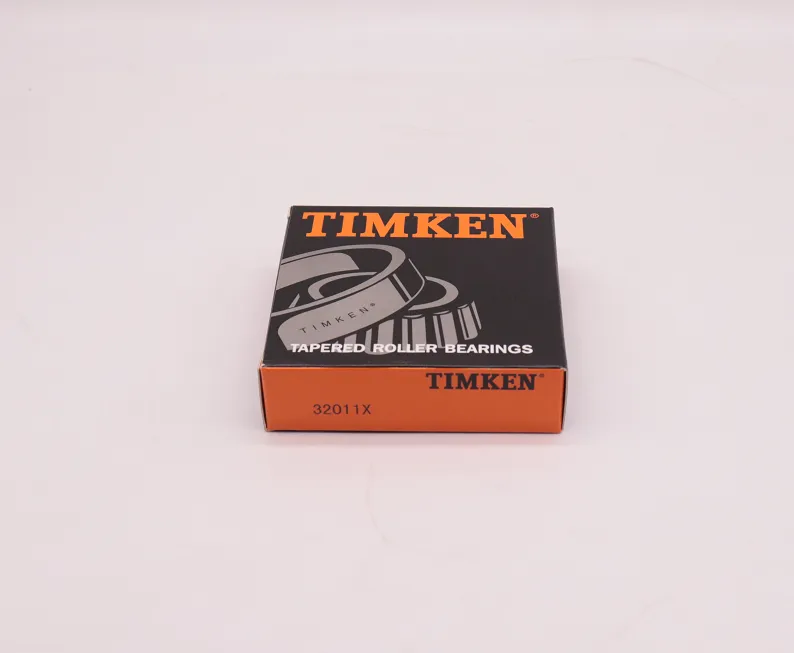

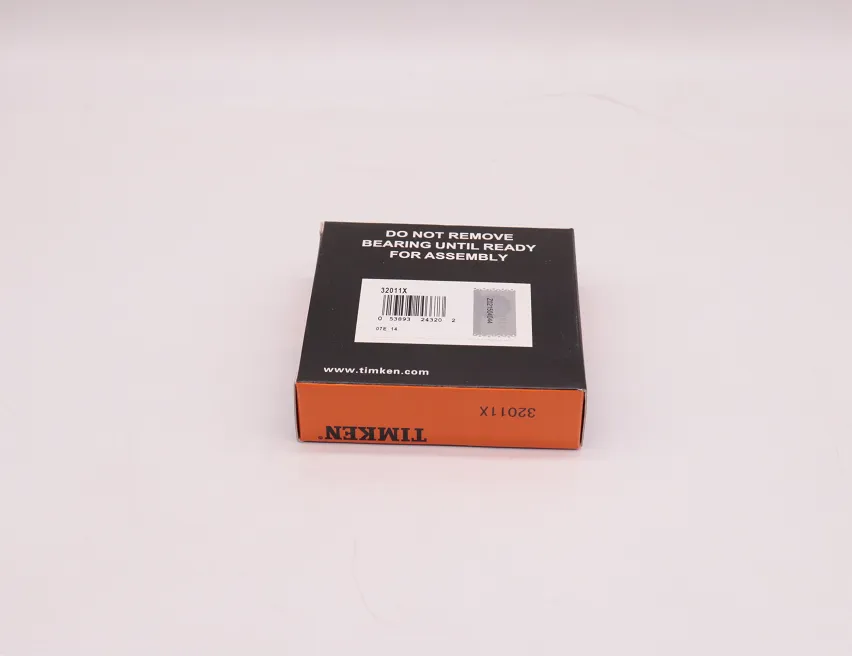

Timken tapered roller bearings 32011X 55x90x23mm
The TIMKEN 32011X is a single-row tapered roller bearing, featuring a separable design consisting of a cone (inner ring) assembly and a cup (outer ring). Its conical rollers and raceways enable it to accommodate combined radial and single-direction axial loads simultaneously. This design facilitates easy assembly and disassembly, and it is typically mounted in mirror-image pairs for optimal performance.
Key specifications include a bore diameter of 55 mm, outer diameter of 90 mm, and width of 23 mm. It has a basic dynamic load rating of 80.9 kN and a basic static load rating of 116 kN, with a limiting speed of 4000 r/min under grease lubrication and 5300 r/min under oil lubrication. Constructed with chrome steel, this bearing delivers reliable durability and is widely used in applications such as agricultural machinery, conveying equipment, electric motors, trucks and mining equipment.
| Item | 32011X |
| Type | tapered roller bearing |
| Brand | Timken |
| Country of origin | USA |
| Bore diameter | 55 mm |
| Outside diameter | 90 mm |
| Width | 23 mm |
| Basic dynamic load rating | 80.9 kN |
| Basic static load rating | 116 kN |
| Limiting speed | 5,300 1/min |
| Weight | 0.55 kg |
| Application | agricultural machinery, conveying equipment, electric motors, trucks and mining equipment etc. |
| Models available in stock | |||||||
| 30202 | 30302 | 31305 | 32004X | 32204 | 32303 | 33005 | 33205 |
| 30203 | 30303 | 31306 | 32005X | 32205 | 32304 | 33006 | 33206 |
| 30204 | 30304 | 31307 | 32006X | 32206 | 32305 | 33007 | 33207 |
| 30205 | 30305 | 31308 | 32007X | 32207 | 32306 | 33008 | 33208 |
| 30206 | 30306 | 31309 | 32008X | 32208 | 32307 | 33009 | 33209 |
| 30207 | 30307 | 31310 | 32009X | 32209 | 32308 | 33010 | 33210 |
| 30208 | 30308 | 31311 | 32010X | 32210 | 32309 | 33011 | 33211 |
| 30209 | 30309 | 31312 | 32011X | 32211 | 32310 | 33012 | 33212 |
| 30210 | 30310 | 31313 | 32012X | 32212 | 32311 | 33013 | 33213 |
| 30211 | 30311 | 31314 | 32013X | 32213 | 32312 | 33014 | 33214 |
| 30212 | 30312 | 31315 | 32014X | 32214 | 32313 | 33015 | 33215 |
| 30213 | 30313 | 31316 | 32015X | 32215 | 32314 | 33019 | 33216 |
| 30214 | 30314 | 31317 | 32016X | 32216 | 32315 | 33022 | 33217 |
| 30215 | 30315 | 31318 | 32017X | 32217 | 32316 | 33220 | |
| 30216 | 30316 | 31319 | 32018X | 32218 | 32317 | ||
| 30217 | 30317 | 31320 | 32019X | 32219 | 32318 | ||
| 30218 | 30318 | 31321 | 32020X | 32220 | 32319 | ||
| 30219 | 30319 | 31322 | 32021X | 32221 | 32320 | ||
| 30220 | 30320 | 31324 | 32022X | 32222 | 32321 | ||
| 30221 | 30321 | 31326 | 32024X | 32224 | 32322 | ||
| 30222 | 30322 | 31328 | 32026X | 32226 | 32324 | ||
| 30224 | 30324 | 31330 | 32028X | 32228 | 32334 | ||
| 30226 | 30326 | 32030X | 32230 | ||||
| 30228 | 30328 | 32032X | 32232 | ||||
| 30230 | 30330 | 32034X | 32234 | ||||
| 30232 | 30332 | 32036X | 32236 | ||||
| 30234 | 30334 | 32038X | 32238 | ||||
| 30236 | 32040X | 32240 | |||||
| 30238 | 32044X | 32244 | |||||
| 30240 | 32048X | ||||||
