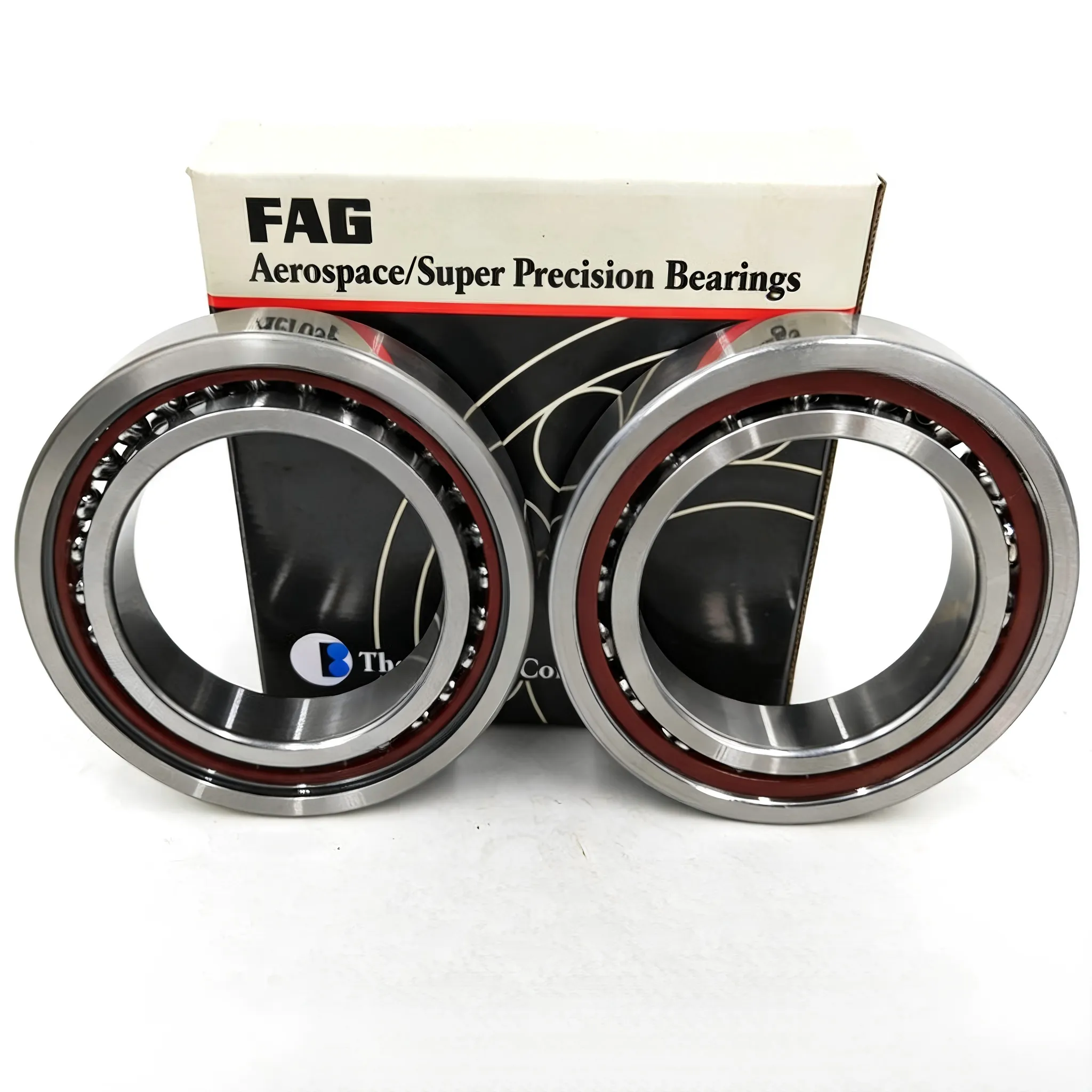

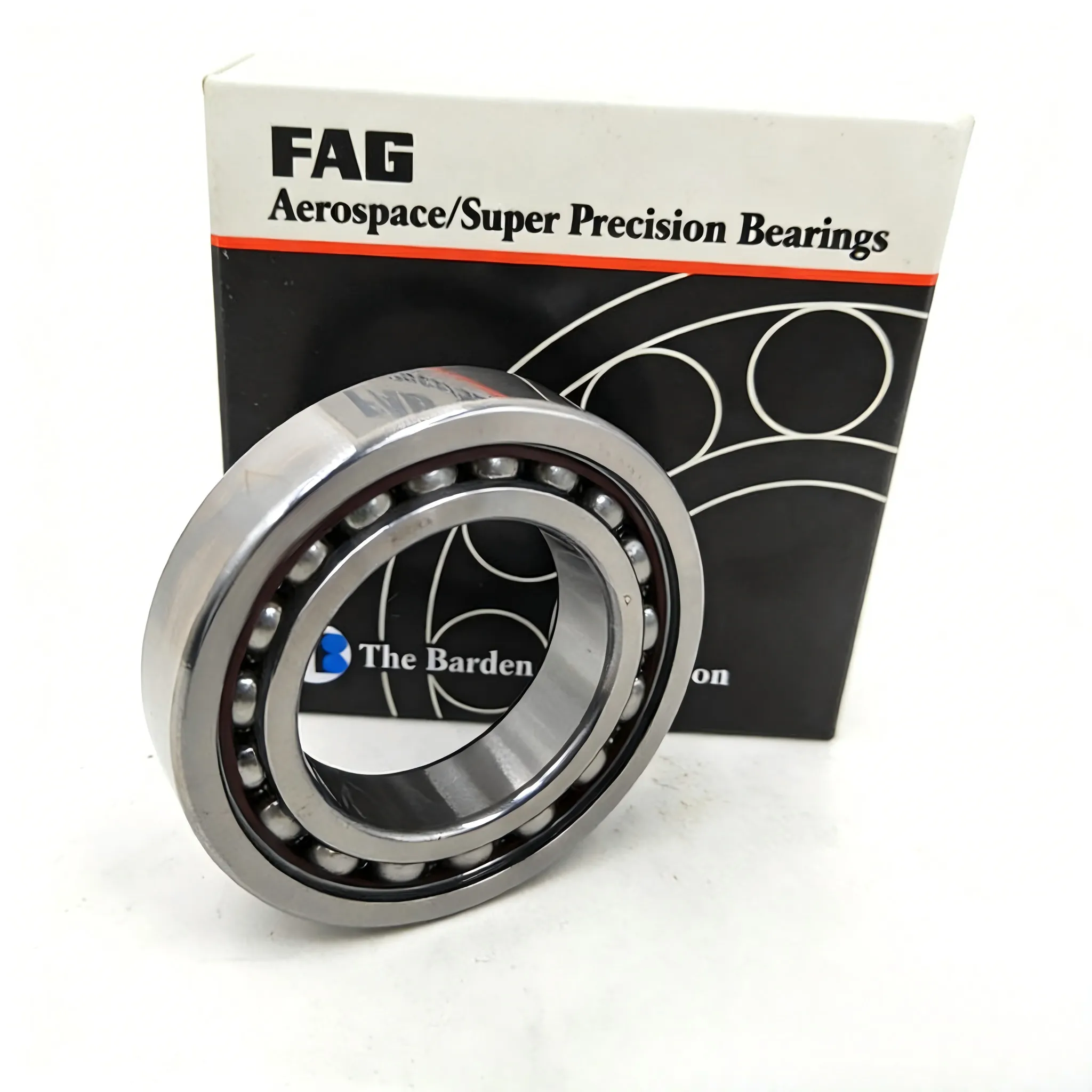

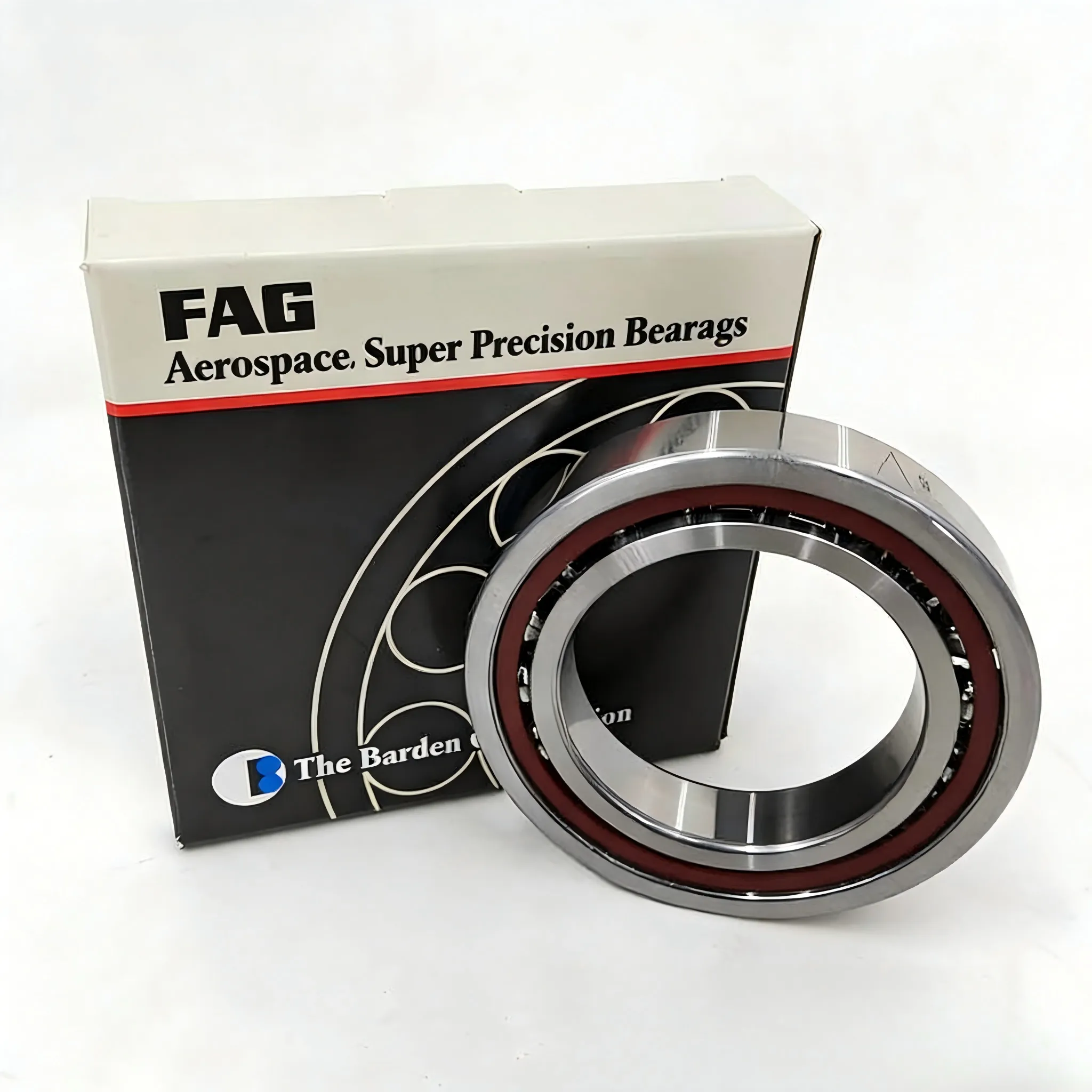

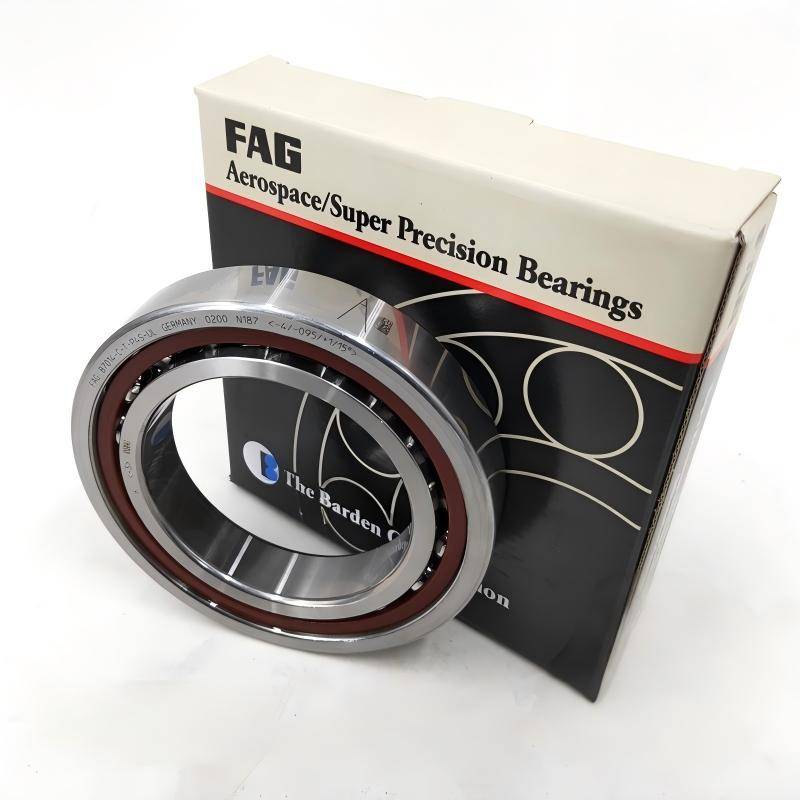

FAG spindle bearings B7008-C-T-P4S-UL 40x68x15mm
The FAG B7008-C-T-P4S-UL is a high-performance single-row angular contact ball bearing designed for precision and high-speed applications. It features solid inner and outer rings, paired with a textile laminated phenolic resin window cage (marked by suffix "T") that ensures stable operation even at temperatures up to 100°C.
The FAG B7008-C-T-P4S-UL is a high-performance single-row angular contact ball bearing designed for precision and high-speed applications. It features solid inner and outer rings, paired with a textile laminated phenolic resin window cage (marked by suffix "T") that ensures stable operation even at temperatures up to 100°C.
With a 15° contact angle ("C"), this bearing effectively accommodates combined radial and axial loads, while the P4S precision class guarantees exceptional running accuracy and dimensional stability—surpassing standard P4 specifications. The "UL" suffix indicates a universal design, enabling easy pairing in O or X arrangements with a slight preload for enhanced rigidity.
Key dimensions include an inner diameter of 40mm, outer diameter of 68mm, and width of 15mm. Boasting a basic dynamic load rating of 20900N and static load rating of 11200N, it excels in high-speed spindle systems, precision machine tools, and other equipment requiring reliable guidance and low wear. Its robust steel construction and optimized design ensure long service life in demanding industrial environments.
| Item | B7008-C-T-P4S-UL |
| Type | spindle bearing/angular contact ball bearing |
| Brand | FAG |
| Country of origin | Germany |

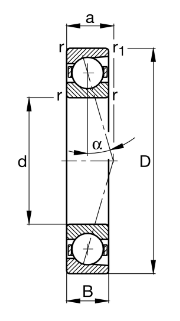

| Bore diameter | 40 mm |
| Outside diameter | 68 mm |
| Width | 15 mm |
| Basic dynamic load rating, radial | 20,900 N |
| Basic static load rating, radial | 11,200 N |
| Fatigue load limit, radial | 1,180 N |
| Limiting speed | 34,000 1/min |
| Weight | 188.97 g |
| Application | precision machine tool spindles, high-speed motors etc. |
| Models available in stock | |
| B7000-C-T-P4S-UL | B7200-C-T-P4S-UL |
| B7001-C-T-P4S-UL | B7201-C-T-P4S-UL |
| B7002-C-T-P4S-UL | B7202-C-T-P4S-UL |
| B7003-C-T-P4S-UL | B7203-C-T-P4S-UL |
| B7004-C-T-P4S-UL | B7204-C-T-P4S-UL |
| B7005-C-T-P4S-UL | B7205-C-T-P4S-UL |
| B7006-C-T-P4S-UL | B7206-C-T-P4S-UL |
| B7007-C-T-P4S-UL | B7207-C-T-P4S-UL |
| B7008-C-T-P4S-UL | B7208-C-T-P4S-UL |
| B7009-C-T-P4S-UL | B7209-C-T-P4S-UL |
| B7010-C-T-P4S-UL | B7210-C-T-P4S-UL |
| B7011-C-T-P4S-UL | B7211-C-T-P4S-UL |
| B7012-C-T-P4S-UL | B7212-C-T-P4S-UL |
| B7013-C-T-P4S-UL | B7213-C-T-P4S-UL |
| B7014-C-T-P4S-UL | B7214-C-T-P4S-UL |
| B7015-C-T-P4S-UL | B7215-C-T-P4S-UL |
| B7016-C-T-P4S-UL | B7216-C-T-P4S-UL |
| B7017-C-T-P4S-UL | B7217-C-T-P4S-UL |
| B7018-C-T-P4S-UL | B7218-C-T-P4S-UL |
| B7019-C-T-P4S-UL | B7219-C-T-P4S-UL |
| B7020-C-T-P4S-UL | B7220-C-T-P4S-UL |
| B7021-C-T-P4S-UL | B7221-C-T-P4S-UL |
| B7022-C-T-P4S-UL | B7222-C-T-P4S-UL |
| B7024-C-T-P4S-UL | B7224-C-T-P4S-UL |
| B7026-C-T-P4S-UL | B7226-C-T-P4S-UL |
| B7028-C-T-P4S-UL | B7228-C-T-P4S-UL |
| B7030-C-T-P4S-UL | B7230-C-T-P4S-UL |
| B7032-C-T-P4S-UL | B7232-C-T-P4S-UL |
| B7034-C-T-P4S-UL | B7234-C-T-P4S-UL |
| B7036-C-T-P4S-UL | B7236-C-T-P4S-UL |
| B7038-C-T-P4S-UL | B7238-C-T-P4S-UL |
| B7040-C-T-P4S-UL | B7240-C-T-P4S-UL |
| B7044-C-T-P4S-UL | B7244-C-T-P4S-UL |
| B7048-C-T-P4S-UL | |
