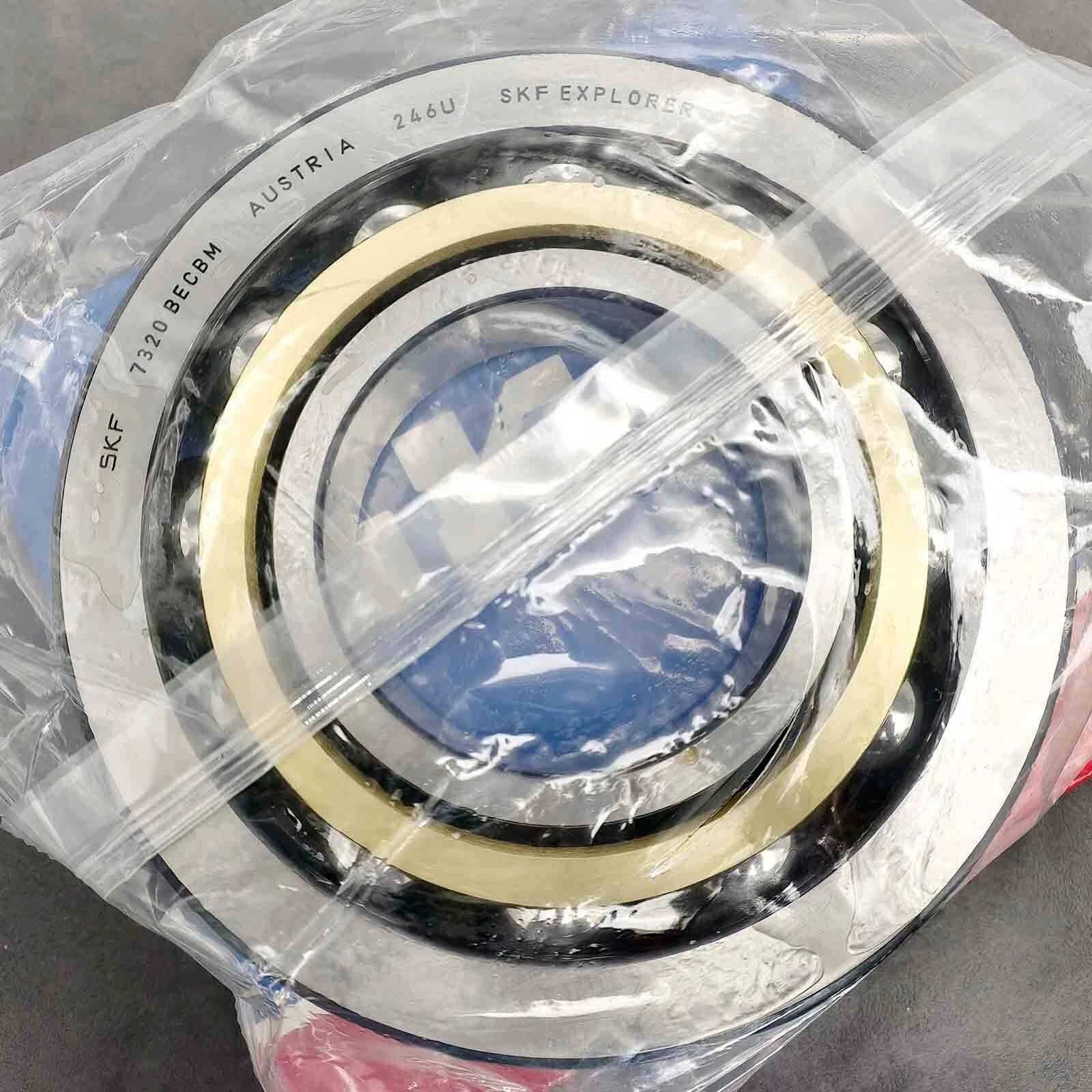

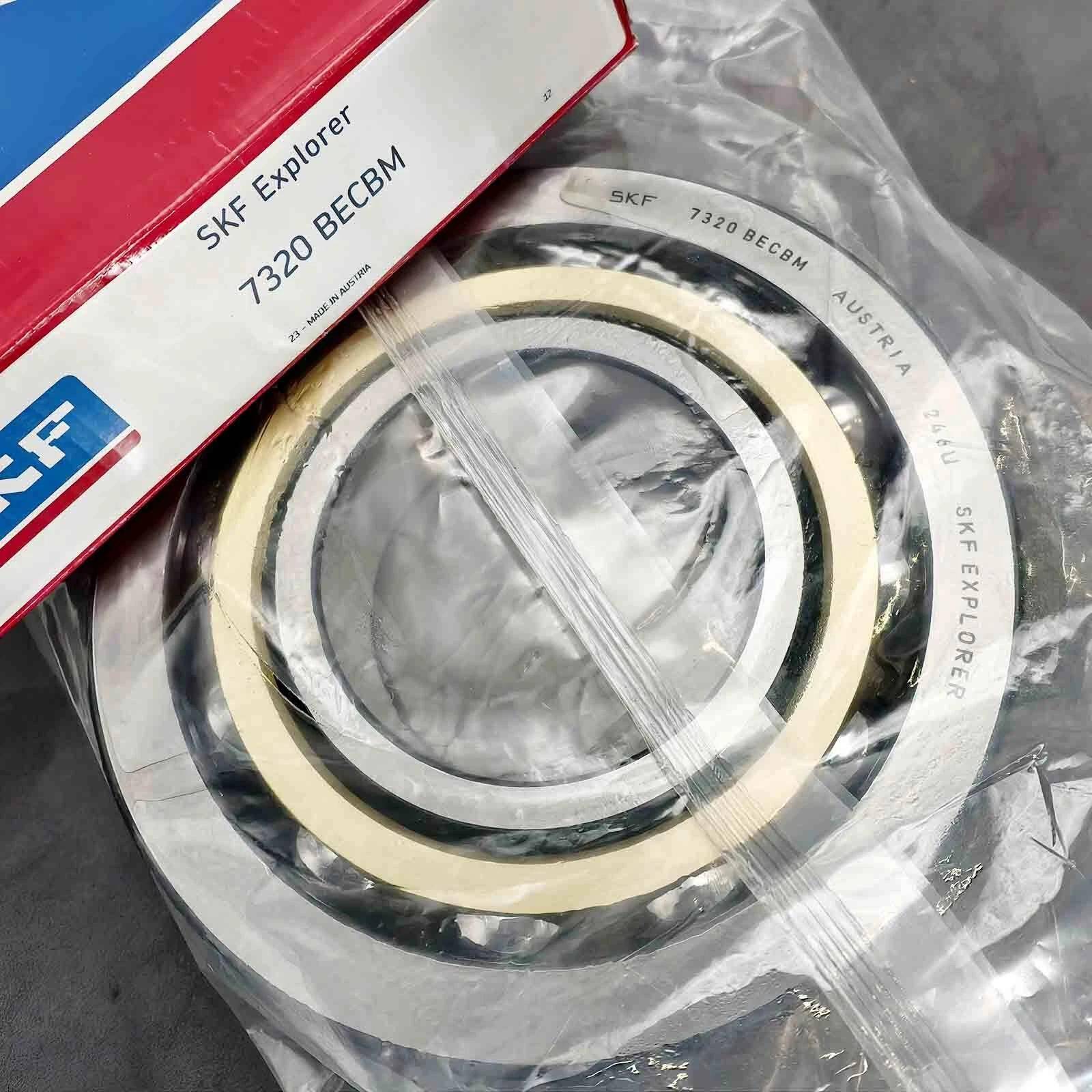

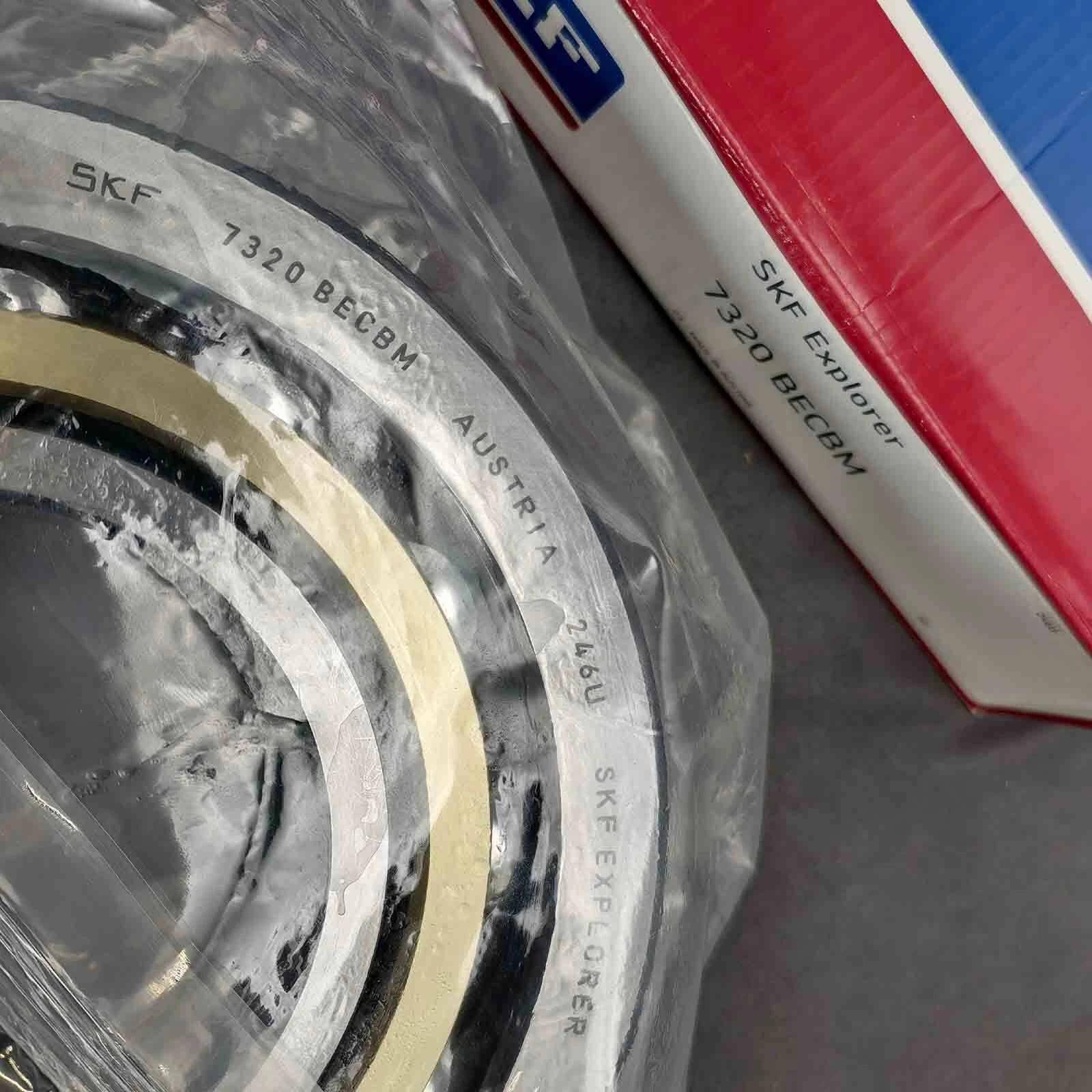

SKF 7320BECBM Single-Row Angular Contact Ball Bearings 100x215x47mm
SKF 7320BECBM is a premium single-row angular contact ball bearing belonging to the SKF Explorer series, designed to accommodate combined radial and axial loads (acting primarily in one direction) with exceptional performance at high speeds. It features a 40° contact angle and a machined brass window-type cage (M designation), optimized for durability and consistent load distribution in demanding industrial applications.
SKF 7320BECBM is a premium single-row angular contact ball bearing belonging to the SKF Explorer series, designed to accommodate combined radial and axial loads (acting primarily in one direction) with exceptional performance at high speeds. It features a 40° contact angle and a machined brass window-type cage (M designation), optimized for durability and consistent load distribution in demanding industrial applications.
Core Specifications
| Parameter | Value |
|---|---|
| Bearing Type | Single-Row Angular Contact Ball Bearing |
| Inner Diameter (d) | 100 mm |
| Outer Diameter (D) | 215 mm |
| Width (B) | 47 mm |
| Contact Angle | 40° |
| Basic Dynamic Load Rating (C) | 216 kN |
| Basic Static Load Rating (C₀) | 208 kN |
| Reference Speed | 3800 r/min |
| Limiting Speed | 4800 r/min |
| Tolerance Class | P6 |
| Cage Material | Machined Brass (window-type, ball-centered) |
| SKF Performance Class | SKF Explorer |
| Mass | 7.2 kg |
| Operating Temperature Range | -40°C to +100°C |
| Internal Clearance | GA+GB+GC preload grades available |
Key Features and Advantages
- High-Speed Capability: Engineered for reliable operation at high rotational speeds, making it suitable for applications like machine tool spindles and high-speed gearboxes.
- Optimized Load Handling: The 40° contact angle provides excellent axial load capacity while maintaining good radial load handling capabilities.
- SKF Explorer Technology: Incorporates advanced material science and manufacturing processes for extended fatigue life, reduced friction, and improved operational efficiency compared to standard bearings.
- Robust Brass Cage: Machined brass cage ensures precise roller guidance, high-temperature resistance, and long service life under heavy loads.
- Universal Matching: Designed for duplex arrangements (back-to-back, face-to-face, or tandem) to achieve specific preload levels and enhance rigidity.
- P6 Precision Tolerance: Ensures accurate positioning and reduced vibration in precision applications.
Typical Applications
- Machine tool spindles and rotary tables
- High-speed gearboxes and reducers
- Centrifugal pumps and compressors
- Gas and steam turbines
- Electric motors and generators
- Printing and textile machinery
Installation and Maintenance Tips
- Mounting Arrangements: Ideal for duplex mounting (DB, DF, or DT configurations) to accommodate bidirectional axial loads or increase rigidity.
- Preload Considerations: Select appropriate preload grade (GA, GB, GC) based on application requirements for optimal performance.
- Lubrication: Use high-quality lubricants (grease or oil) compatible with operating speeds and temperatures; follow SKF's lubrication guidelines for re-lubrication intervals.
- Shaft and Housing Fits: Adhere to recommended seat tolerances for standard conditions to ensure proper bearing operation and prevent excessive clearance or preload.
- Alignment: Ensure proper shaft and housing alignment to avoid premature wear and extend bearing life.
