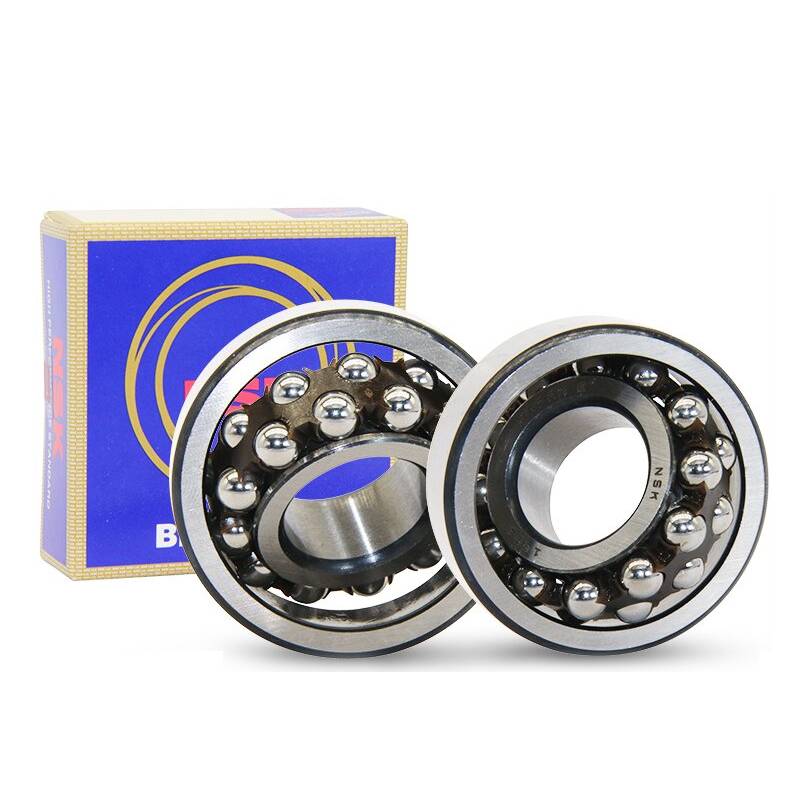

NSK self aligning ball bearings 1204 20x47x14mm
NSK 1204 is a high-quality self-aligning ball bearing produced by NSK, a renowned Japanese bearing manufacturer.
NSK 1204 is a high-quality self-aligning ball bearing produced by NSK, a renowned Japanese bearing manufacturer.
Key specs: Bore diameter 20mm, outer diameter 47mm, width 14mm. It features a spherical outer ring raceway, enabling it to compensate for 2-3 degrees of shaft misalignment, which extends its service life.
With low friction and quiet operation, it handles radial loads effectively and accommodates light axial loads. Suitable for small motors, pumps, conveyor systems and agricultural equipment.
Reliable, durable and easy to maintain, it’s an ideal choice for general industrial applications requiring self-aligning performance.
| Item | 1204 |
| Type | self aligning ball bearing |
| Brand | NSK |
| Country of origin | Japan |
| Bore diameter | 20 mm |
| Outside diameter | 47 mm |
| Width | 14 mm |
| Basic dynamic load rating, radial | 11,000 N |
| Basic static load rating, radial | 2,610 N |
| Limiting speed | 17,000 1/min |
| Weight | 0.12 kg |
| Application | small motors, pumps, conveyor systems and agricultural equipment etc. |
| Models available in stock | |||
| 1200 | 1300 | 2200 | 2300 |
| 1201 | 1301 | 2201 | 2301 |
| 1202 | 1302 | 2202 | 2302 |
| 1203 | 1303 | 2203 | 2303 |
| 1204 | 1304 | 2204 | 2304 |
| 1205 | 1305 | 2205 | 2305 |
| 1206 | 1306 | 2206 | 2306 |
| 1207 | 1307 | 2207 | 2307 |
| 1208 | 1308 | 2208 | 2308 |
| 1209 | 1309 | 2209 | 2309 |
| 1210 | 1310 | 2210 | 2310 |
| 1211 | 1311 | 2211 | 2311 |
| 1212 | 1312 | 2212 | 2312 |
| 1213 | 1313 | 2213 | 2313 |
| 1214 | 1314 | 2214 | 2314 |
| 1215 | 1315 | 2215 | 2315 |
| 1216 | 1316 | 2216 | 2316 |
| 1217 | 1317 | 2217 | 2317 |
| 1218 | 1318 | 2218 | 2318 |
| 1219 | 1319 | 2219 | 2319 |
| 1220 | 1320 | 2220 | 2320 |
| 1221 | 1321 | 2221 | 2321 |
| 1222 | 1322 | 2222 | 2322 |
| Notes: models with tapered bore K are also available | |||
