NSK self aligning ball bearings 2306 30x72x27mm

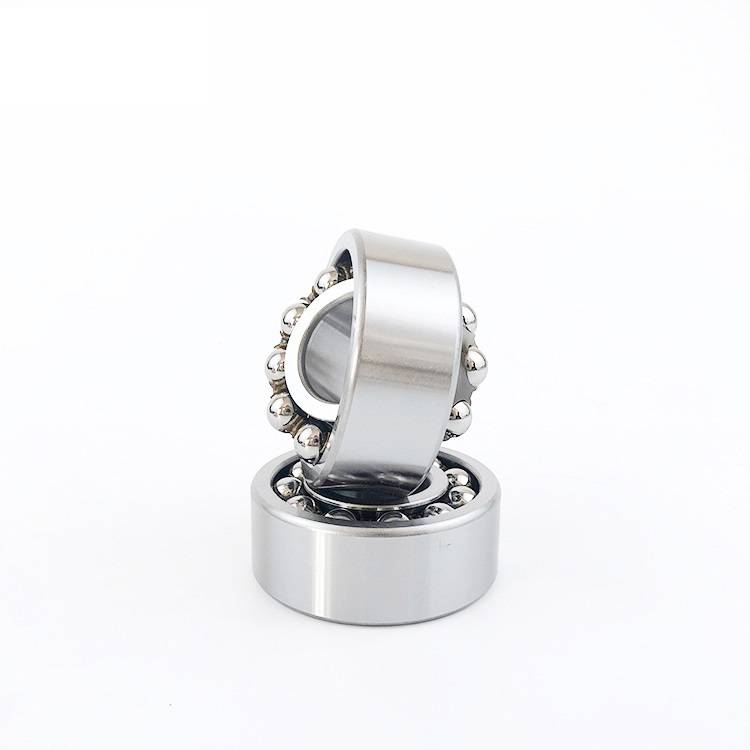

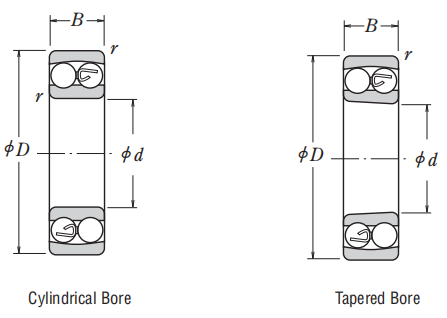

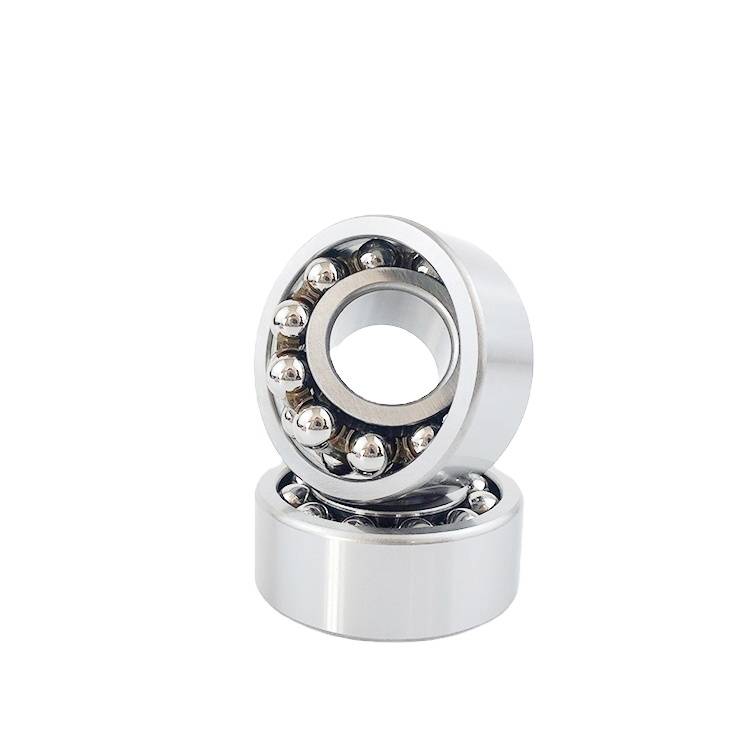

NSK 2306 is a double-row self-aligning ball bearing with a bore diameter of 30mm, outer diameter of 72mm, and width of 27mm.
NSK 2306 is a double-row self-aligning ball bearing with a bore diameter of 30mm, outer diameter of 72mm, and width of 27mm. Its spherical raceway enables shaft misalignment compensation, making it suitable for heavy-duty applications like electric motors, pumps, and agricultural machinery. The bearing combines high radial/axial load capacity with NSK's precision manufacturing for reliable performance in industrial settings.
| Item | 2306 |
| Type | self aligning ball bearing |
| Brand | NSK |
| Country of origin | Japan |
| Bore diameter | 30 mm |
| Outside diameter | 72 mm |
| Width | 27 mm |
| Basic dynamic load rating, radial | 35,000 N |
| Basic static load rating, radial | 8,750 N |
| Limiting speed | 10,000 1/min |
| Weight | 0.51 kg |
| Application | electric motors and generators, pumps and compressors, gearboxes and reducers, conveyors and agricultural machinery etc. |
| Models available in stock | |||
| 1200 | 1300 | 2200 | 2300 |
| 1201 | 1301 | 2201 | 2301 |
| 1202 | 1302 | 2202 | 2302 |
| 1203 | 1303 | 2203 | 2303 |
| 1204 | 1304 | 2204 | 2304 |
| 1205 | 1305 | 2205 | 2305 |
| 1206 | 1306 | 2206 | 2306 |
| 1207 | 1307 | 2207 | 2307 |
| 1208 | 1308 | 2208 | 2308 |
| 1209 | 1309 | 2209 | 2309 |
| 1210 | 1310 | 2210 | 2310 |
| 1211 | 1311 | 2211 | 2311 |
| 1212 | 1312 | 2212 | 2312 |
| 1213 | 1313 | 2213 | 2313 |
| 1214 | 1314 | 2214 | 2314 |
| 1215 | 1315 | 2215 | 2315 |
| 1216 | 1316 | 2216 | 2316 |
| 1217 | 1317 | 2217 | 2317 |
| 1218 | 1318 | 2218 | 2318 |
| 1219 | 1319 | 2219 | 2319 |
| 1220 | 1320 | 2220 | 2320 |
| 1221 | 1321 | 2221 | 2321 |
| 1222 | 1322 | 2222 | 2322 |
| Notes: models with tapered bore K are also available | |||
