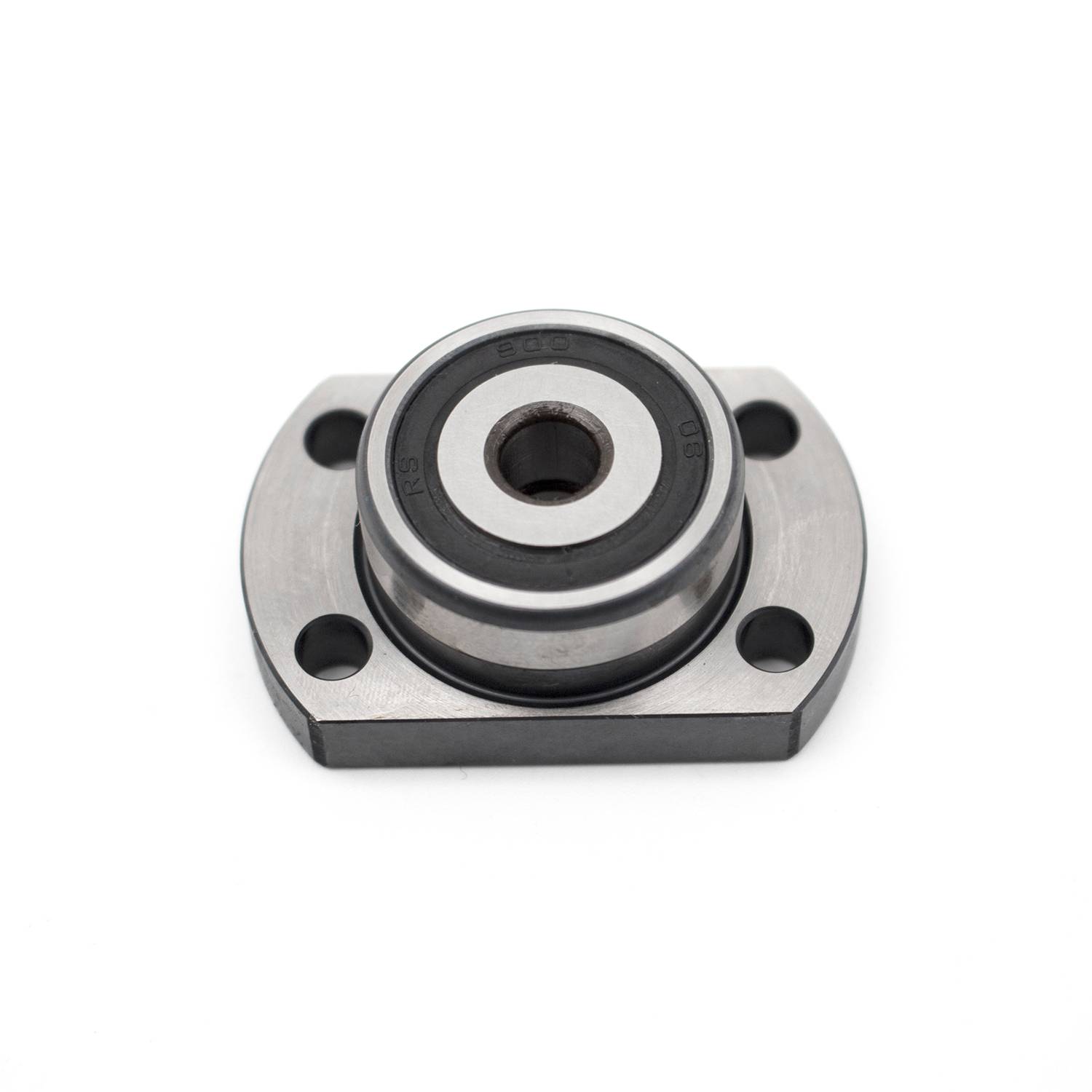

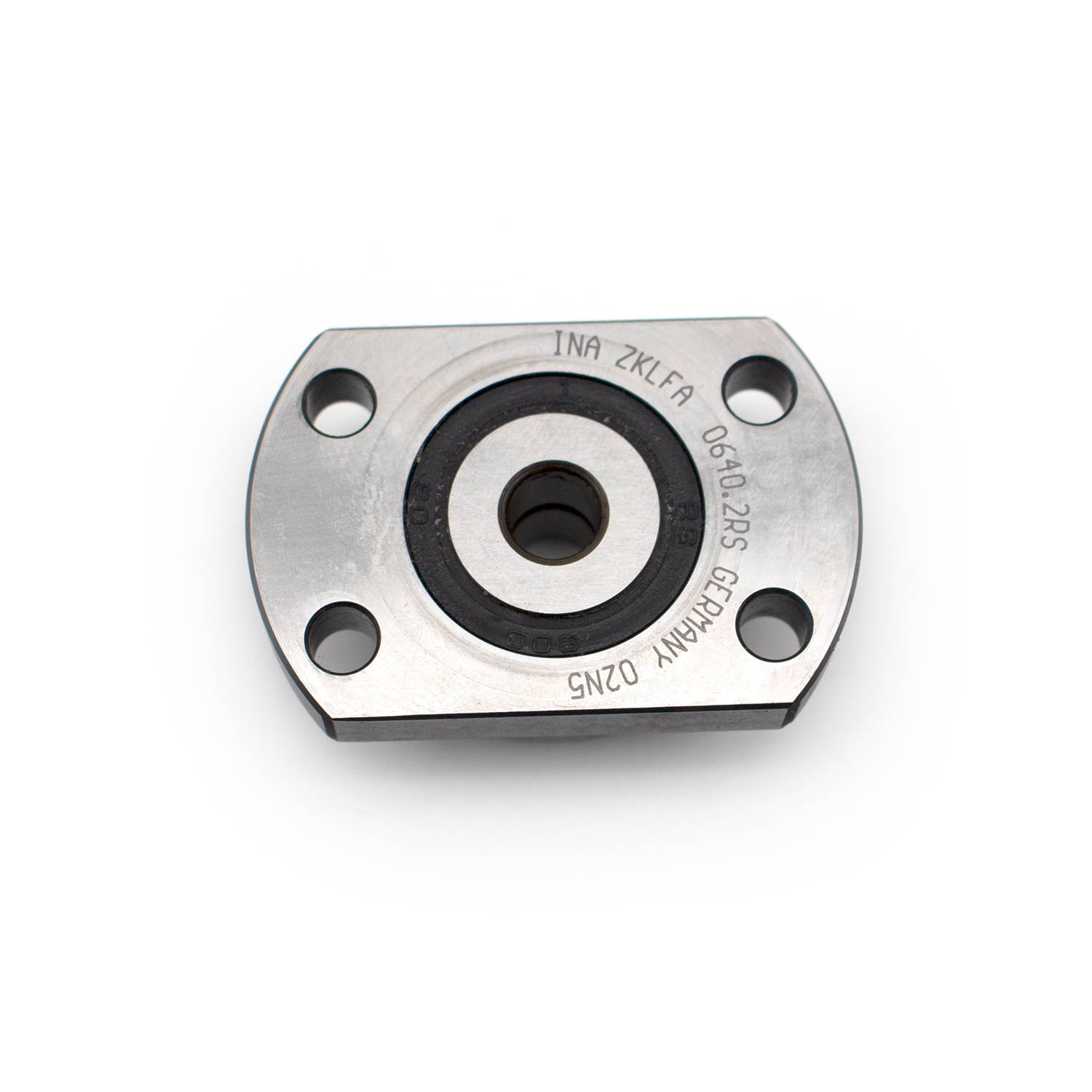

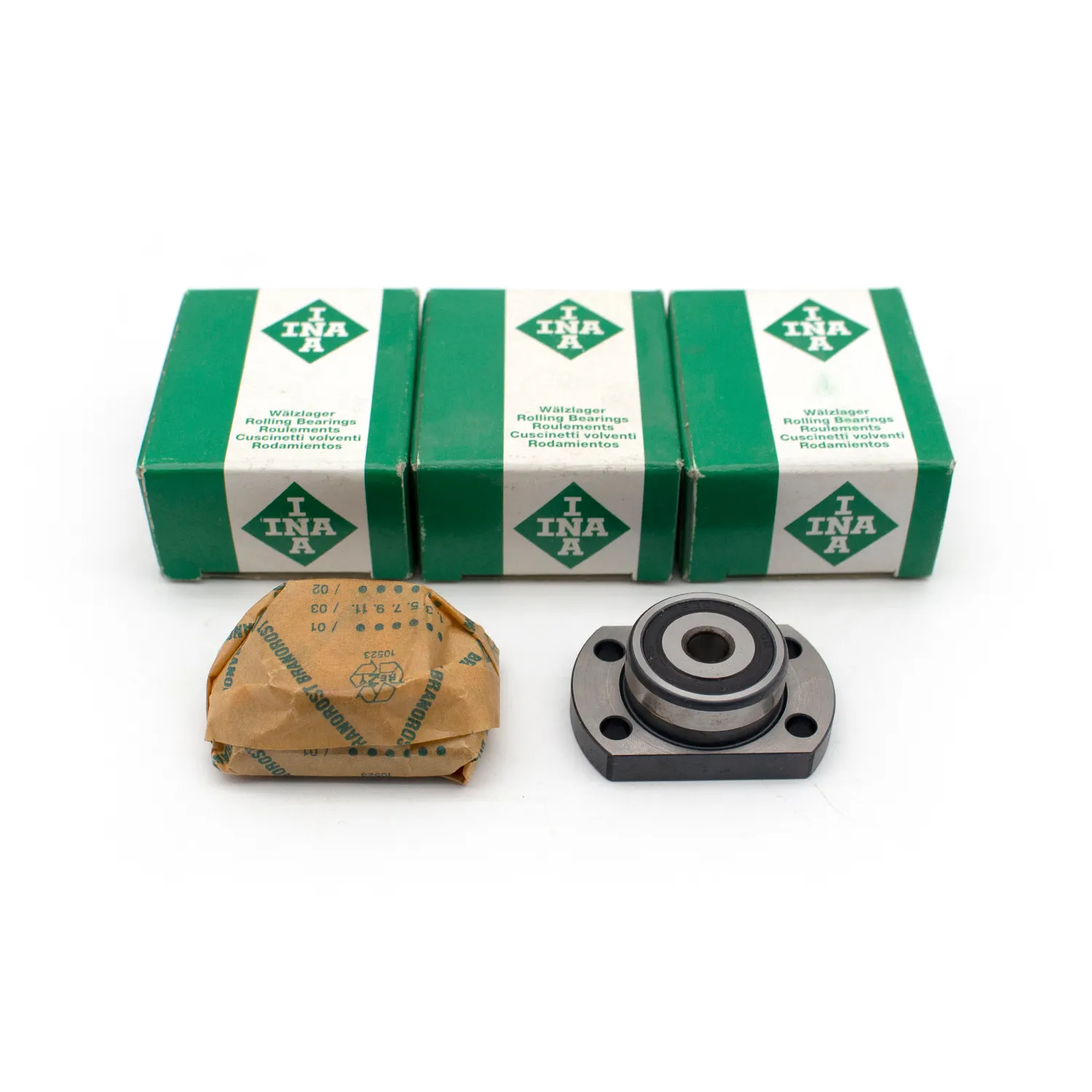

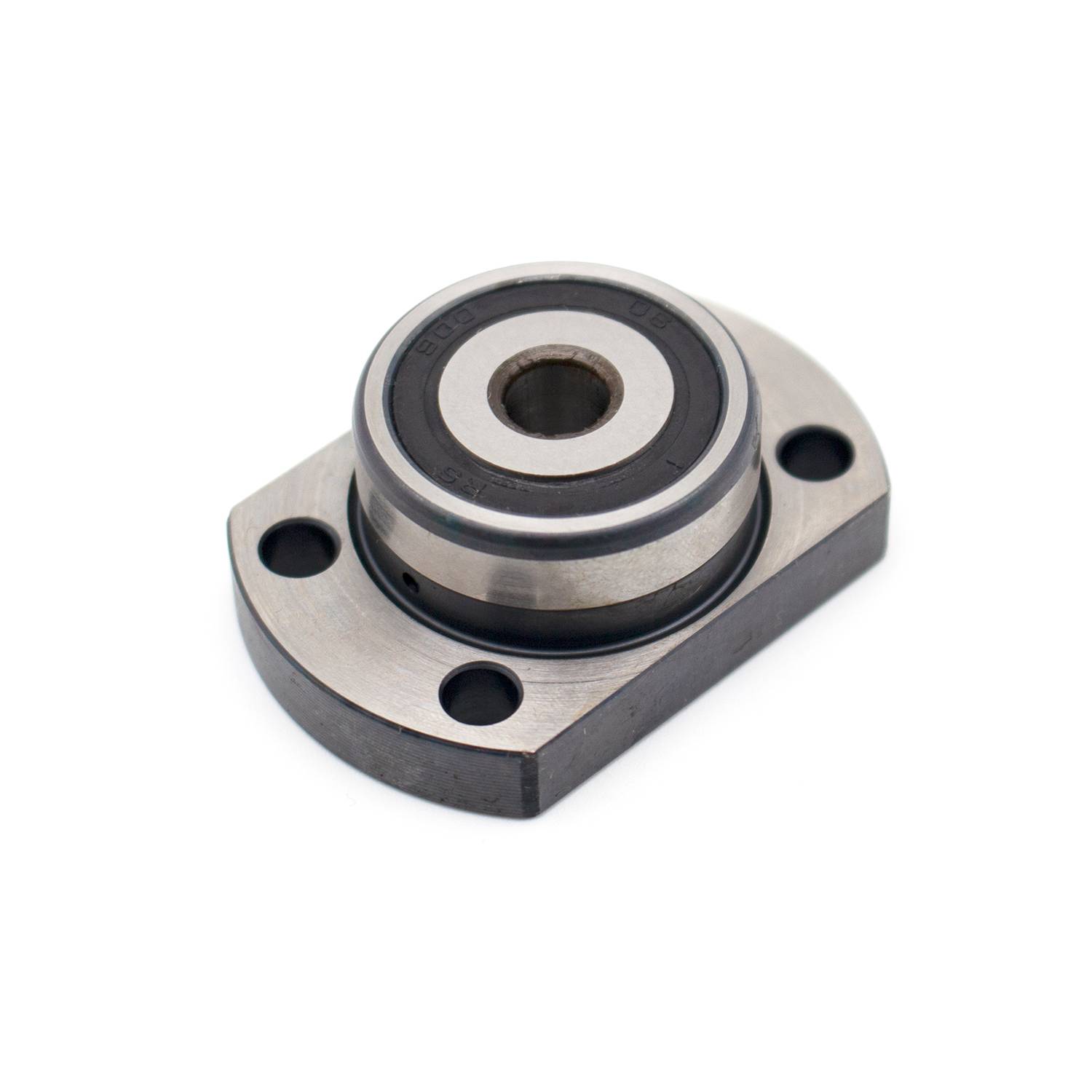

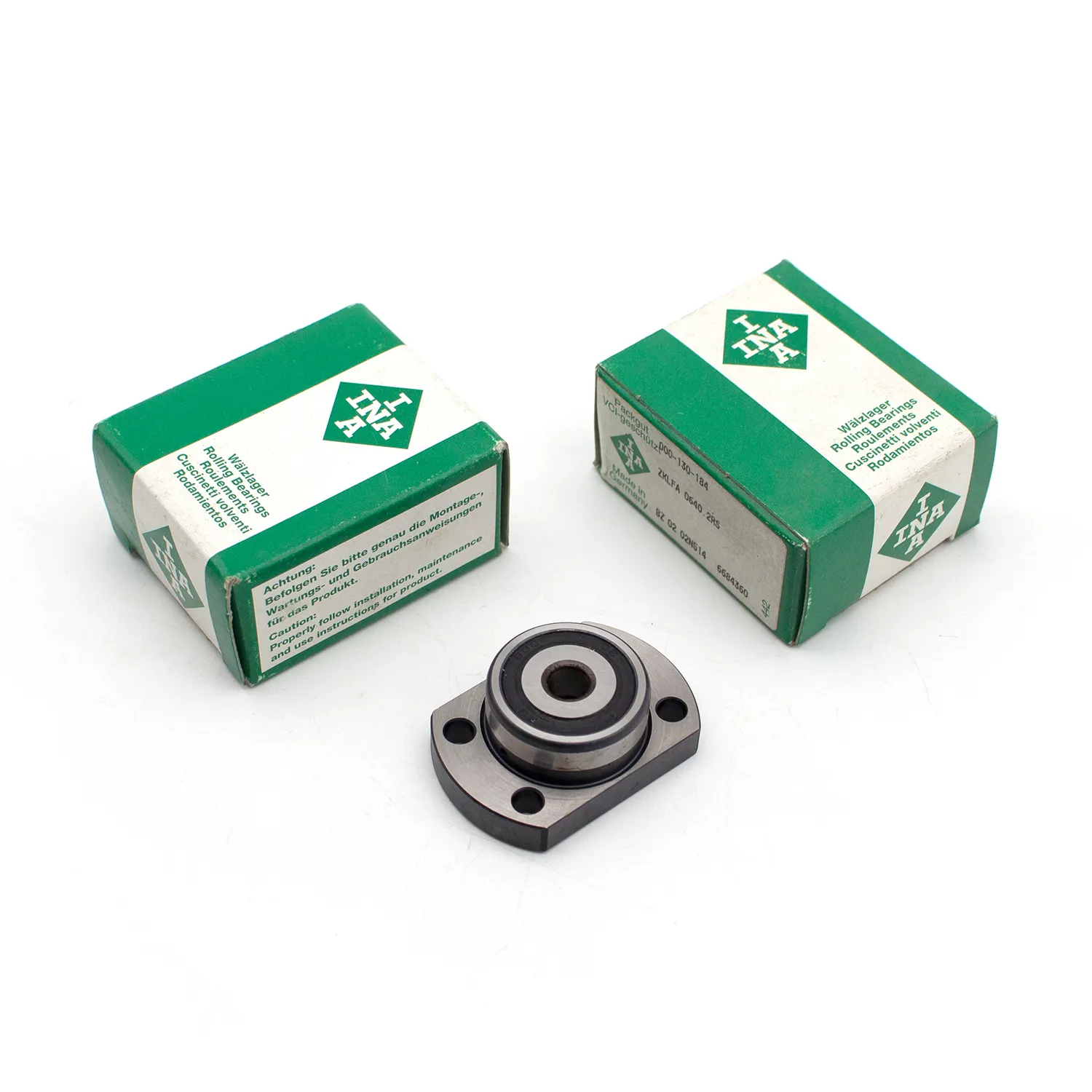

INA bearings ZKLFA0640-2RS 6x24x15mm
The INA ZKLFA0640 2RS is a high-precision angular-contact ball bearing assembly, specifically designed for high-dynamic ball or roller screw drive systems. It features double-sided 2RS rubber seals, effectively preventing dust and moisture intrusion while retaining pre-filled lubricant for extended service life.
The INA ZKLFA0640 2RS is a high-precision angular-contact ball bearing assembly, specifically designed for high-dynamic ball or roller screw drive systems. It features double-sided 2RS rubber seals, effectively preventing dust and moisture intrusion while retaining pre-filled lubricant for extended service life.

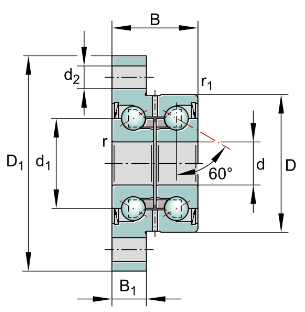

With a compact structure (inner diameter 6 mm, outer diameter 24 mm, width 15 mm), this bearing comes with a preloaded arrangement for easy assembly and Corrotect® plated flange housing for strong corrosion resistance. It delivers excellent axial rigidity (200 N/μm) and low frictional torque, ensuring precise motion control under dynamic loads.
Ideal for precision applications like small machine tools, semiconductor equipment, precision robotics and gauging tools, the ZKLFA0640 2RS combines reliable performance, low maintenance and space-saving design, meeting the strict requirements of precision mechanical systems.
| Item | ZKLFA0640-2RS |
| Type | axial angular contact ball bearing |
| Brand | INA |
| Country of origin | Germany |
| Bore diameter | 6 mm |
| Outside diameter | 24 mm |
| Width | 15 mm |
| Basic dynamic load rating, axial | 6,900 N |
| Basic static load rating, axial | 8,500 N |
| Fatigue load limit, axial | 385 N |
| Limiting speed | 16,400 1/min |
| Weight | 59 g |
| Application | small machine tools, semiconductor equipment, precision robotics and gauging tools etc. |
