SKF thrust ball bearings 51106 30x47x11mm
The SKF 51106 is a single-direction thrust ball bearing, engineered to accommodate axial loads in one direction and cannot withstand radial loads. Featuring a separable design, it allows for easy mounting, dismounting, and maintenance inspections, with most components being interchangeable.

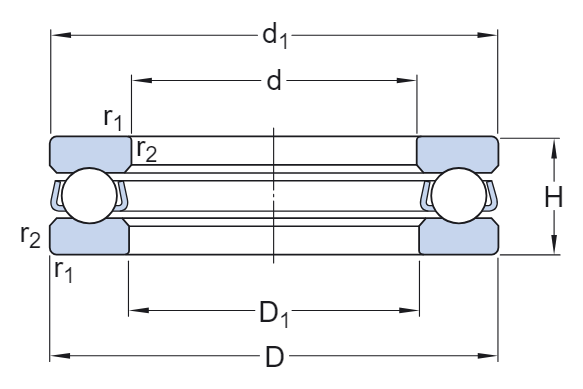

Key specifications include a bore diameter of 30 mm, outer diameter of 47 mm, and height of 11 mm. It boasts a basic dynamic load rating of 19 kN and a basic static load rating of 43 kN, with a reference speed of 6,000 r/min and a limiting speed of 8,500 r/min. Constructed with bearing steel and a sheet metal cage, this bearing offers reliable performance and durability for various industrial applications such as machine tools, agricultural machinery, and industrial equipment.
| Item | 51106 |
| Type | thrust ball bearing |
| Brand | SKF |
| Country of origin | Sweden |
| Bore diameter | 30 mm |
| Outside diameter | 47 mm |
| Width | 11 mm |
| Basic dynamic load rating | 19 kN |
| Basic static load rating | 43 kN |
| Limiting speed | 8,500 1/min |
| Weight | 0.063 kg |
| Application | machine tools, agricultural machinery, and industrial equipment etc. |
| Models available in stock | |||
| 51103 | 51203 | 51305 | 51405 |
| 51104 | 51204 | 51306 | 51406 |
| 51105 | 51205 | 51307 | 51407 |
| 51106 | 51206 | 51308 | 51408 |
| 51107 | 51207 | 51309 | 51409 |
| 51108 | 51208 | 51310 | 51410 |
| 51109 | 51209 | 51311 | 51411 |
| 51110 | 51210 | 51312 | 51412 |
| 51111 | 51211 | 51313 | 51413 |
| 51112 | 51212 | 51314 | 51414 |
| 51113 | 51213 | 51315 | 51415 |
| 51114 | 51214 | 51316 | 51416 |
| 51115 | 51215 | 51317 | 51417 |
| 51116 | 51216 | 51318 | |
| 51217 | 51320 | ||
| 51218 | |||
| 51220 | |||
| 51222 | |||
