SKF thrust ball bearings 51206 30x52x16mm
The SKF 51206 is a single-direction thrust ball bearing, engineered to accommodate axial loads in one direction and cannot withstand radial loads. Featuring a separable design, it allows for easy mounting, dismounting, and maintenance inspections, with most components being interchangeable. The bore of the shaft ring is ground to enable an interference fit with the shaft.

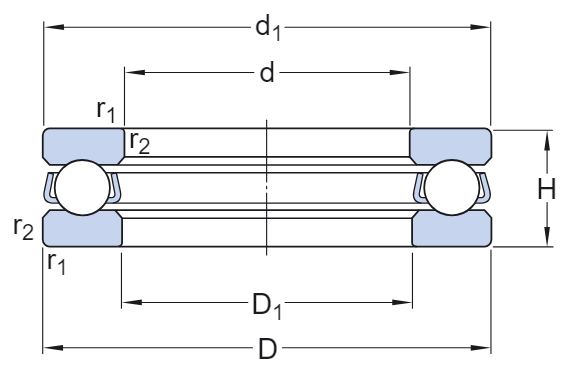

Key specifications include a bore diameter of 30 mm, outer diameter of 52 mm, and height of 16 mm. It boasts a basic dynamic load rating of 25.1 kN and a basic static load rating of 51 kN, with a reference speed of 4,800 r/min and a limiting speed of 6,700 r/min. Constructed with bearing steel and a sheet metal cage, this bearing offers reliable performance and durability for various industrial applications such as agricultural machinery, food processing equipment, machine tools and material handling systems.
| Item | 51206 |
| Type | thrust ball bearing |
| Brand | SKF |
| Country of origin | Sweden |
| Bore diameter | 30 mm |
| Outside diameter | 52 mm |
| Width | 16 mm |
| Basic dynamic load rating | 25.1 kN |
| Basic static load rating | 51 kN |
| Limiting speed | 6,700 1/min |
| Weight | 0.129 kg |
| Application | agricultural machinery, food processing equipment, machine tools and material handling systems. etc. |
| Models available in stock | |||
| 51103 | 51203 | 51305 | 51405 |
| 51104 | 51204 | 51306 | 51406 |
| 51105 | 51205 | 51307 | 51407 |
| 51106 | 51206 | 51308 | 51408 |
| 51107 | 51207 | 51309 | 51409 |
| 51108 | 51208 | 51310 | 51410 |
| 51109 | 51209 | 51311 | 51411 |
| 51110 | 51210 | 51312 | 51412 |
| 51111 | 51211 | 51313 | 51413 |
| 51112 | 51212 | 51314 | 51414 |
| 51113 | 51213 | 51315 | 51415 |
| 51114 | 51214 | 51316 | 51416 |
| 51115 | 51215 | 51317 | 51417 |
| 51116 | 51216 | 51318 | |
| 51217 | 51320 | ||
| 51218 | |||
| 51220 | |||
| 51222 | |||
